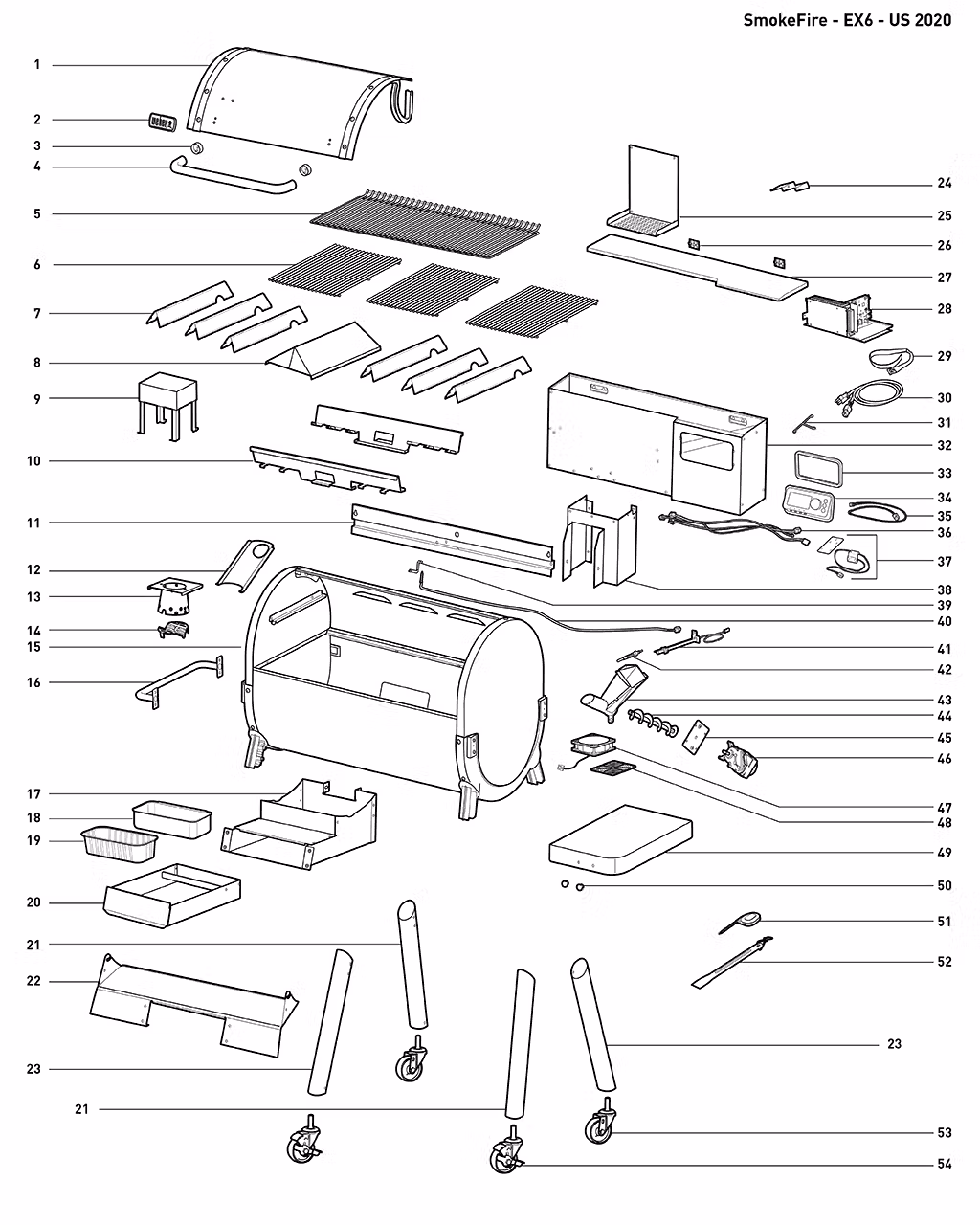

1
|
69259
|
Lid Hardware (nuts & washers)
|
|
|
1
|
68992
|
Lid assembly, black, 36" SmokeFire
|
|
|
2
|
67063
|
Logo plate, SS w/black filling, Spirit II
|
|
|
3
|
69249
|
Lid handle spacer/bezel
|
|
|
4
|
68974
|
Lid handle hardware, SmokeFire
|
|
|
4
|
68989
|
Lid handle, EX-6
|
|
|
5
|
68932
|
Upper cooking grate, EX-6 (nickel plated steel)
|
|
|
6
|
68926
|
Lower cooking grate, EX-6, set of 3, (nickel plated steel)
|
|
|
6
|
69239
|
Grate clips, SmokeFire
|
|
|
7
|
69262
|
Flavorizer bar, set of 6, EX-6, SS
|
|
|
8
|
68947
|
Large Flavorizer Bar, EX-4/EX-6
|
|
|
9
|
68937
|
Diffuser weldment
|
|
|
10
|
68936
|
Flavorizer bar bracket (single)
|
|
|
11
|
68963
|
Hopper support bar
|
|
|
12
|
64763
|
Welded Burn Pot/Grate w/Slide
|
|
|
12
|
68938
|
Pellet slide
|
|
|
13
|
64763
|
Welded Burn Pot/Grate w/Slide
|
|
|
13
|
64769
|
Welded Burn Pot/Grate w/o Slide
|
|
|
14
|
64769
|
Welded Burn Pot/Grate w/o Slide
|
|
|
14
|
64763
|
Welded Burn Pot/Grate w/Slide
|
|
|
15
|
69259
|
Lid Hardware (nuts & washers)
|
|
|
15
|
68972
|
Side table/side handle reinforcement plate/bracket set
|
|
|
15
|
69397
|
Felt strip pack (5 total)
|
|
|
15
|
69252
|
Cookbox assembly, EX-6
|
|
|
16
|
68972
|
Side table/side handle reinforcement plate/bracket set
|
|
|
16
|
68916
|
LHS handle
|
|
|
17
|
68923
|
Enclosure for grease tray w/ hardware
|
|
|
17
|
68973
|
Hardware for legs/skirt (qty. 14)
|
|
|
18
|
70379
|
Catch pan kit
|
|
|
19
|
6498
|
Drip pan (qty 10) Large Grills
|
Voir maintenant20,99 $
|
|
20
|
64762
|
Grease Tray
|
|
|
21
|
68919
|
Leg, right-front, left-rear w/ hardware
|
|
|
22
|
69390
|
Front Skirt 36" Black
|
|
|
23
|
68920
|
Leg, right-rear, left-front w/ hardware
|
|
|
24
|
68941
|
Pellet hatch release
|
|
|
25
|
68958
|
Hopper access panel
|
|
|
26
|
68978
|
Hopper hinge kit w/hardware
|
|
|
27
|
68987
|
Hopper lid, EX-6
|
|
|
28
|
69403
|
SmokeFire Fuse (1.6A/250V)
|
|
|
28
|
68967
|
Motherboard/power assembly, 120V, EX-6
|
|
|
28
|
68977
|
Controller mount hardware
|
|
|
29
|
69307
|
Cord wrap hook & loop, 14" x .75
|
|
|
30
|
69258
|
Power cord/plug
|
|
|
31
|
68971
|
Hopper T-guard wire
|
|
|
32
|
69230
|
Hopper Pellet Slide, EX-6
|
|
|
32
|
68975
|
Wire clip (qty 3)
|
|
|
32
|
69254
|
Hopper assembly, EX-6
|
|
|
32
|
68976
|
Hopper mount hardware
|
|
|
33
|
68965
|
Controller bezel
|
|
|
34
|
68964
|
Connect Controller Assembly
|
|
|
35
|
68943
|
Wiring harness, Connect module
|
|
|
36
|
68945
|
Cable for motor
|
|
|
36
|
68946
|
Cable for glow plug
|
|
|
36
|
68944
|
Cable for fan
|
|
|
36
|
68975
|
Wire clip (qty 3)
|
|
|
37
|
68955
|
Pellet sensor bracket
|
|
|
37
|
68981
|
Pellet sensor shield
|
|
|
38
|
69373
|
Hopper lower panel
|
|
|
39
|
68954
|
Thermocouple bracket
|
|
|
40
|
68942
|
Thermocouple
|
|
|
41
|
68956
|
Glow plug bracket assembly
|
|
|
42
|
69436
|
Glow Plug Igniter SF '21
|
|
|
43
|
69376
|
Auger/Motor/Tube/Spout Weld SmokeFire
|
|
|
43
|
68979
|
Hardware for auger tube
|
|
|
43
|
69374
|
Welded chute assembly, SmokeFire
|
|
|
44
|
69375
|
Motor/Auger Assembly SmokeFire 20
|
|
|
44
|
68979
|
Hardware for auger tube
|
|
|
44
|
68982
|
Auger
|
|
|
45
|
69377
|
Plate Mount, tube/motor, SmokeFire
|
|
|
46
|
69375
|
Motor/Auger Assembly SmokeFire 20
|
|
|
46
|
68984
|
Auger Motor
|
|
|
47
|
68952
|
Fan Assembly
|
|
|
48
|
68953
|
Fan guard
|
|
|
49
|
68972
|
Side table/side handle reinforcement plate/bracket set
|
|
|
49
|
68990
|
RHS table, stainless steel
|
|
|
50
|
69263
|
Tool hook (qty 2), chrome
|
|
|
51
|
68970
|
Meat probe w/red sleeve, SmokeFire
|
|
|
52
|
69257
|
Grease scraping tool
|
|
|
53
|
68917
|
Rolling caster, SmokeFire, (qty 1)
|
|
|
54
|
68918
|
Locking caster, SmokeFire, (qty 1)
|
|
|
410
|
76688
|
KIT ADDENDUM/INSERTS SMOKEFIRE
|
|
|
410
|
40223511
|
Literature Kit SmokeFire 24"/36" US/
|
|
|
470
|
68972
|
Side table/side handle reinforcement plate/bracket set
|
|
|
470
|
68975
|
Wire clip (qty 3)
|
|
|
470
|
68979
|
Hardware for auger tube
|
|
|
470
|
68973
|
Hardware for legs/skirt (qty. 14)
|
|
|
470
|
68976
|
Hopper mount hardware
|
|
|
470
|
69259
|
Lid Hardware (nuts & washers)
|
|
|
470
|
75926
|
Hardware Kit, SmokeFire
|
|
|
470
|
68974
|
Lid handle hardware, SmokeFire
|
|
|
470
|
68977
|
Controller mount hardware
|
|
|
510
|
7003
|
SmokeFire 36" front table
|
|
|
510
|
7004
|
SmokeFire Wet Smoke Kit
|
|
|
510
|
7001
|
SmokeFire side table
|
|
|
510
|
7005
|
SmokeFire cutting board
|
Voir maintenant51,99 $
|
