A
|
54364
|
Assembly guide, Genesis E/S 300 LP/NG, US/CA/MX, '12
|
|
B
|
62773
|
Hardware for table assembly, Genesis 300 series, '11
|
|
B
|
62776
|
Hardware for frame/rear panel, Genesis '11
|
|
B
|
62779
|
Hardware for control panel, Genesis '11
|
|
B
|
67762
|
Hardware kit for bottom panel
|
|
B
|
88063
|
Hardware for tank blocker
|
|
A
|
56826
|
Addendum for Mexico (Required for Mexico only)
|
|
B
|
62775
|
Hardware for cookbox, Genesis 300 series, '11
|
|
B
|
62778
|
Hardware for heat shield/side burner, Genesis '11
|
|
B
|
62781
|
Hardware for manifold, Genesis '11
|
|
B
|
72387
|
Hardware kit, Genesis 320/330 LP, '15
|
|
B
|
88206
|
Hardware for lid assembly
|
|
A
|
54396
|
Lit kit, Genesis E/S 320/330 LP, USA/CA/MX, '12
|
|
B
|
62774
|
Guide screws for burner tubes/grease tray rails screws
|
|
B
|
62777
|
Hardware for connectors, Genesis '11
|
|
B
|
62780
|
Hardware for bulkhead, Genesis '11
|
|
B
|
67765
|
Hardware for side burner table, Genesis
|
|
B
|
88065
|
Glide buttons and hardware
|
|

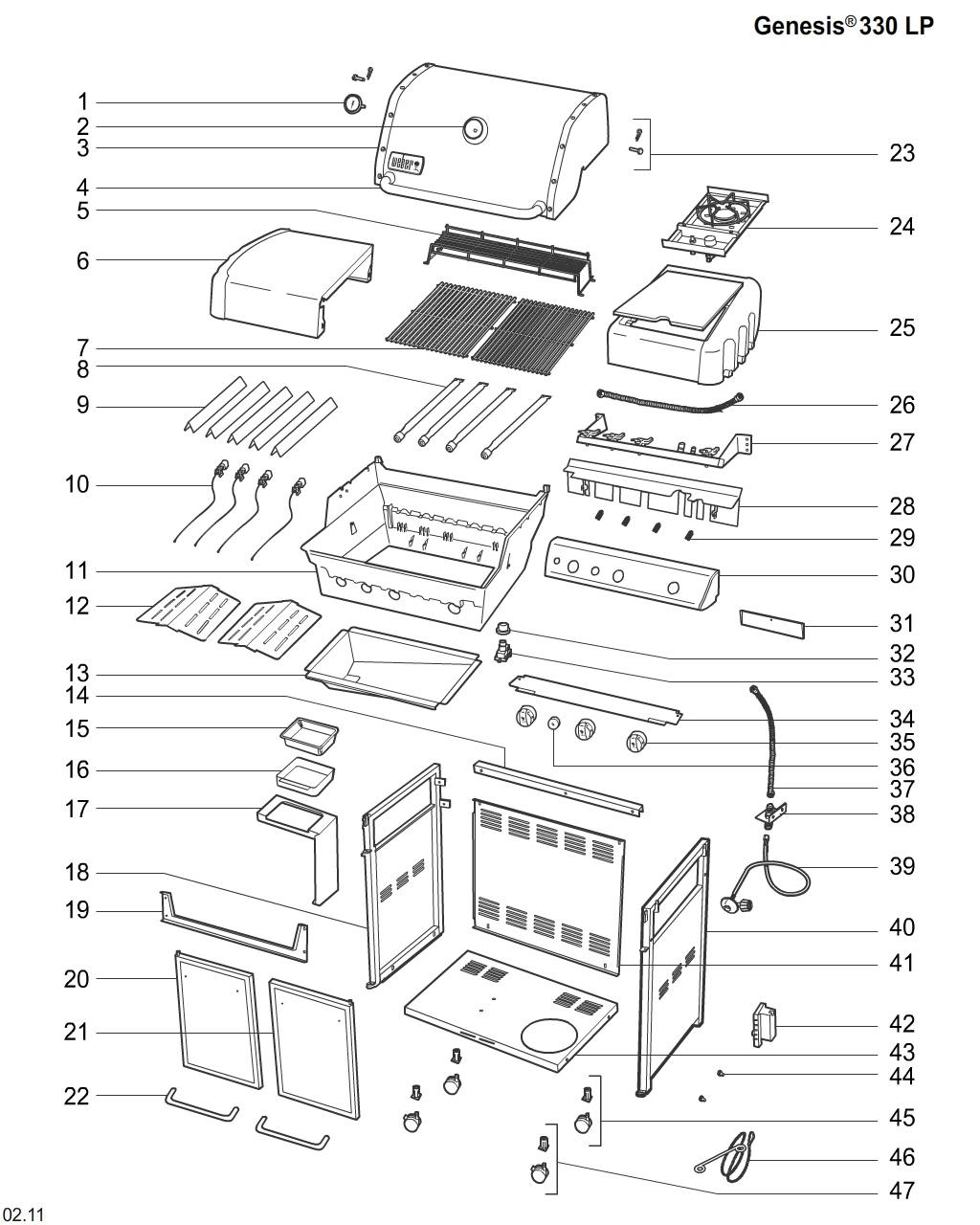

1
|
67088
|
Thermometer, '18
|
|
2
|
67717
|
Bezel for Genesis/Summit, '07
|
|
3
|
68230
|
Lid assembly, Genesis 300 '11, SS
|
|
4
|
67718
|
Handle w/hardware, Genesis E/S 300 series
|
|
4
|
65908
|
Hardware pack for handle
|
|
5
|
65054
|
Warming rack, SS, Genesis 300 (2011-2016)
|
|
6
|
62773
|
Hardware for table assembly, Genesis 300 series, '11
|
|
6
|
62750
|
LHS table assembly, Genesis '11
|
|
7
|
82184
|
Grates for Genesis 2013, SS, rod-style
|
|
8
|
62774
|
Guide screws for burner tubes/grease tray rails screws
|
|
8
|
62753
|
Sear burner tube LP, qty 1
|
|
8
|
62752
|
LP Burner tube set, Genesis, '11, US
|
|
9
|
62784
|
Stainless steel flavorizer bar set (Qty 5), Genesis 300 series '11
|
|
10
|
65946
|
Igniter kit, Genesis 330, '14
|
|
10
|
62754
|
Ignition electrode set, Genesis 330 '11
|
|
11
|
62786
|
Grease tray rails (set)
|
|
11
|
62775
|
Hardware for cookbox, Genesis 300 series, '11
|
|
11
|
62755
|
Cookbox, Genesis 330, '11
|
|
12
|
65505
|
Heat deflectors (set of 2) stainless steel
|
|
13
|
62757
|
Grease tray, Genesis '11, black
|
|
14
|
62777
|
Hardware for connectors, Genesis '11
|
|
14
|
67844
|
Rear frame connector, Genesis '08
|
|
15
|
6415
|
Aluminum drip pans - small (10 pack)
|
|
16
|
93305
|
Aluminum catch pan kit
|
|
17
|
88063
|
Hardware for tank blocker
|
|
17
|
62771
|
Tank blocker, Genesis '11
|
|
18
|
62758
|
LHS frame, Genesis '11
|
|
18
|
70332
|
Adjustable door hinge
|
|
18
|
62776
|
Hardware for frame/rear panel, Genesis '11
|
|
19
|
62760
|
Front connector frame, Genesis '11
|
|
19
|
62777
|
Hardware for connectors, Genesis '11
|
|
20
|
62042
|
LHS door assembly, Genesis S 300 series, SS, '11
|
|
20
|
61447
|
Door assembly kit, Genesis '11, SS, US
|
|
21
|
62043
|
RHS door assembly, SS, Genesis '11
|
|
21
|
61447
|
Door assembly kit, Genesis '11, SS, US
|
|
22
|
88082
|
Door handle w/hardware '07-'08
|
|
23
|
88206
|
Hardware for lid assembly
|
|
24
|
67765
|
Hardware for side burner table, Genesis
|
|
24
|
91173
|
Side burner ring
|
|
24
|
65506
|
Trivet for side burner, SS
|
|
24
|
81252
|
Rubber lid bumper for side burner (Qty 1)
|
|
24
|
30125801
|
Control knob, side burner, grey
|
|
24
|
67775
|
LP side burner assembly, Genesis '07
|
|
24
|
91174
|
Ignition assembly for side burner
|
|
25
|
62751
|
Side burner table assembly, Genesis '11
|
|
25
|
67764
|
Hinge rod and clip for side burner lid, Genesis '07
|
|
25
|
66463
|
Side burner lid w/hardware, Summit '17
|
|
25
|
62773
|
Hardware for table assembly, Genesis 300 series, '11
|
|
26
|
62761
|
Side burner gas line w/fitting, Genesis '11
|
|
27
|
62781
|
Hardware for manifold, Genesis '11
|
|
27
|
62762
|
LP Manifold assembly, Genesis 330 '11
|
|
28
|
65085
|
Rain/heat shield, Genesis '14
|
|
28
|
62778
|
Hardware for heat shield/side burner, Genesis '11
|
|
29
|
65084
|
Wire clips w/hardware, Genesis
|
|
30
|
65500
|
Control panel, Genesis 330 '15
|
|
30
|
62779
|
Hardware for control panel, Genesis '11
|
|
30
|
62764
|
Control panel, Genesis 330 '11
|
|
30
|
65504
|
Control panel hardware '15
|
|
31
|
62765
|
Heat shield for cookbox, Genesis '11
|
|
32
|
66836
|
Igniter button w/hardware
|
|
33
|
88826
|
Igniter module, Genesis '11
|
|
34
|
62779
|
Hardware for control panel, Genesis '11
|
|
34
|
62766
|
Control panel bottom (wind deflector), Genesis '11
|
|
35
|
88848
|
Main control knob kit, Genesis 300 series '11
|
|
36
|
40255403
|
Sear burner control knob
|
|
37
|
62772
|
Corrugated main gas line, Genesis '11, SS
|
|
38
|
62780
|
Hardware for bulkhead, Genesis '11
|
|
38
|
62768
|
Bulkhead assembly, Genesis '11
|
|
39
|
65909
|
QCC1 hose and regulator, 30"
|
|
39
|
81611
|
Hose clip w/tag, Genesis/Summit '07
|
|
40
|
69992
|
RHS frame assembly
|
|
40
|
62776
|
Hardware for frame/rear panel, Genesis '11
|
|
40
|
70332
|
Adjustable door hinge
|
|
41
|
67755
|
Rear panel with hardware
|
|
41
|
62776
|
Hardware for frame/rear panel, Genesis '11
|
|
42
|
88214
|
Tank scale, Genesis '07
|
|
42
|
81803
|
Small hardware pack
|
|
43
|
67762
|
Hardware kit for bottom panel
|
|
43
|
91357
|
Door magnet
|
|
43
|
82793
|
Bottom panel, Genesis 300 LP, '09
|
|
44
|
88065
|
Glide buttons and hardware
|
|
45
|
79499
|
Caster w/out lock, Genesis (2012-2016), Summit (2012-2019)
|
|
45
|
70359
|
Caster w/o lock, Spirit ('09-'12), Genesis/Summit ('07-'11) qty 1
|
|
46
|
81544
|
Match holder
|
|
47
|
79500
|
Locking caster, Genesis (2012-2016), Summit (2012-2019)
|
|
47
|
70360
|
Locking caster, Spirit ('09-'12), Genesis ('07-'11) Summit ('07-'11) qty 1
|
|
410
|
54364
|
Assembly guide, Genesis E/S 300 LP/NG, US/CA/MX, '12
|
|
410
|
54396
|
Lit kit, Genesis E/S 320/330 LP, USA/CA/MX, '12
|
|
470
|
62774
|
Guide screws for burner tubes/grease tray rails screws
|
|
470
|
62777
|
Hardware for connectors, Genesis '11
|
|
470
|
62780
|
Hardware for bulkhead, Genesis '11
|
|
470
|
67762
|
Hardware kit for bottom panel
|
|
470
|
81803
|
Small hardware pack
|
|
470
|
88206
|
Hardware for lid assembly
|
|
470
|
62773
|
Hardware for table assembly, Genesis 300 series, '11
|
|
470
|
62776
|
Hardware for frame/rear panel, Genesis '11
|
|
470
|
62779
|
Hardware for control panel, Genesis '11
|
|
470
|
66836
|
Igniter button w/hardware
|
|
470
|
72387
|
Hardware kit, Genesis 320/330 LP, '15
|
|
470
|
88065
|
Glide buttons and hardware
|
|
470
|
62775
|
Hardware for cookbox, Genesis 300 series, '11
|
|
470
|
62778
|
Hardware for heat shield/side burner, Genesis '11
|
|
470
|
62781
|
Hardware for manifold, Genesis '11
|
|
470
|
67765
|
Hardware for side burner table, Genesis
|
|
470
|
88063
|
Hardware for tank blocker
|
|
480
|
62752
|
LP Burner tube set, Genesis, '11, US
|
|
480
|
91174
|
Ignition assembly for side burner
|
|
480
|
7629
|
Igniter kit, Genesis 330
|
|
480
|
88848
|
Main control knob kit, Genesis 300 series '11
|
|
480
|
7627
|
QCC1 hose and regulator, 30"
|
|
480
|
62754
|
Ignition electrode set, Genesis 330 '11
|
|
480
|
93305
|
Aluminum catch pan kit
|
|
510
|
7421
|
Weber Original Gourmet BBQ System Griddle
|
|
510
|
7566
|
Griddle for Genesis E/S, 2011, porcelain-enameled cast iron
|
|
510
|
7615
|
Weber Elevations Tiered Cooking System Grill Rack and Skewer Set
|
|
510
|
7618
|
Weber Elevations Tiered Cooking System 4-Piece Skewer Set
|
|
510
|
7652
|
Rotisserie, Genesis II/LX 200/300 series
|
|
510
|
8836
|
Weber Original Gourmet BBQ System Pizza Stone
|
|
510
|
7130
|
Premium grill cover, Genesis II/LX 300, Genesis E/S 300
|
|
510
|
7549
|
Vinyl cover for Genesis Island Cabinetry
|
|
510
|
7587
|
Gourmet BBQ System Cooking Grate, Genesis 300 series
|
|
510
|
7617
|
Weber Elevations Tiered Cooking System Expansion Rack
|
|
510
|
7621
|
Porcelain enamel flavorizer bar set (Qty 5), Genesis 300 series '11
|
|
510
|
8834
|
Weber Original Gourmet BBQ System Sear Grate
|
|
510
|
8841
|
Weber Original Gourmet BBQ System Ebelskiver - discontinued
|
|
510
|
7516
|
Weber Handle Light, 2015-2019
|
|
510
|
7578
|
Weber Style Premium Cast-Iron Plancha Genesis 300 Series
|
|
510
|
7616
|
Weber Elevations Tiered Cooking System Basket with Frame
|
|
510
|
7620
|
Stainless steel flavorizer bar set (Qty 5) Genesis 300 series '11
|
|
510
|
8838
|
Weber Original Gourmet BBQ System Poultry Roaster
|
