A
|
48592
|
Literature Kit, Summit 660 NG Built-in '16
|
|
|
A
|
56826
|
Addendum for Mexico (Required for Mexico only)
|
|
|
B
|
67762
|
Hardware kit for bottom panel
|
|
|
B
|
84272
|
Hardware for Summit built-in series, '11
|
|
|
B
|
88067
|
Manifold hardware, Summit '07
|
|
|
B
|
88212
|
Hardware for bulkhead, Summit '07
|
|
|
A
|
56574
|
Literature kit, Summit 660 built-in NG, '11
|
|
|
B
|
62776
|
Hardware for frame/rear panel, Genesis '11
|
|
|
B
|
84116
|
Rotisserie hardware for tuckaway rotisserie, w/forks, '10
|
|
|
B
|
88063
|
Hardware for tank blocker
|
|
|
B
|
88210
|
Hardware for burner tubes, Genesis/Summit '07
|
|
|
A
|
48928
|
Literature Kit, Summit 660 built-in NG, US/CA/MX '15
|
|
|
B
|
60600
|
Hardware for cookbox, Summit '10
|
|
|
B
|
70392
|
Hardware for IR cover
|
|
|
B
|
85636
|
Hardware (10-32 x .375 philips pan head screw, qty 4)
|
|
|
B
|
88208
|
Hardware for bezels/control panel
|
|
|
B
|
88231
|
Hardware kit for control panel, Summit '11
|
|
|

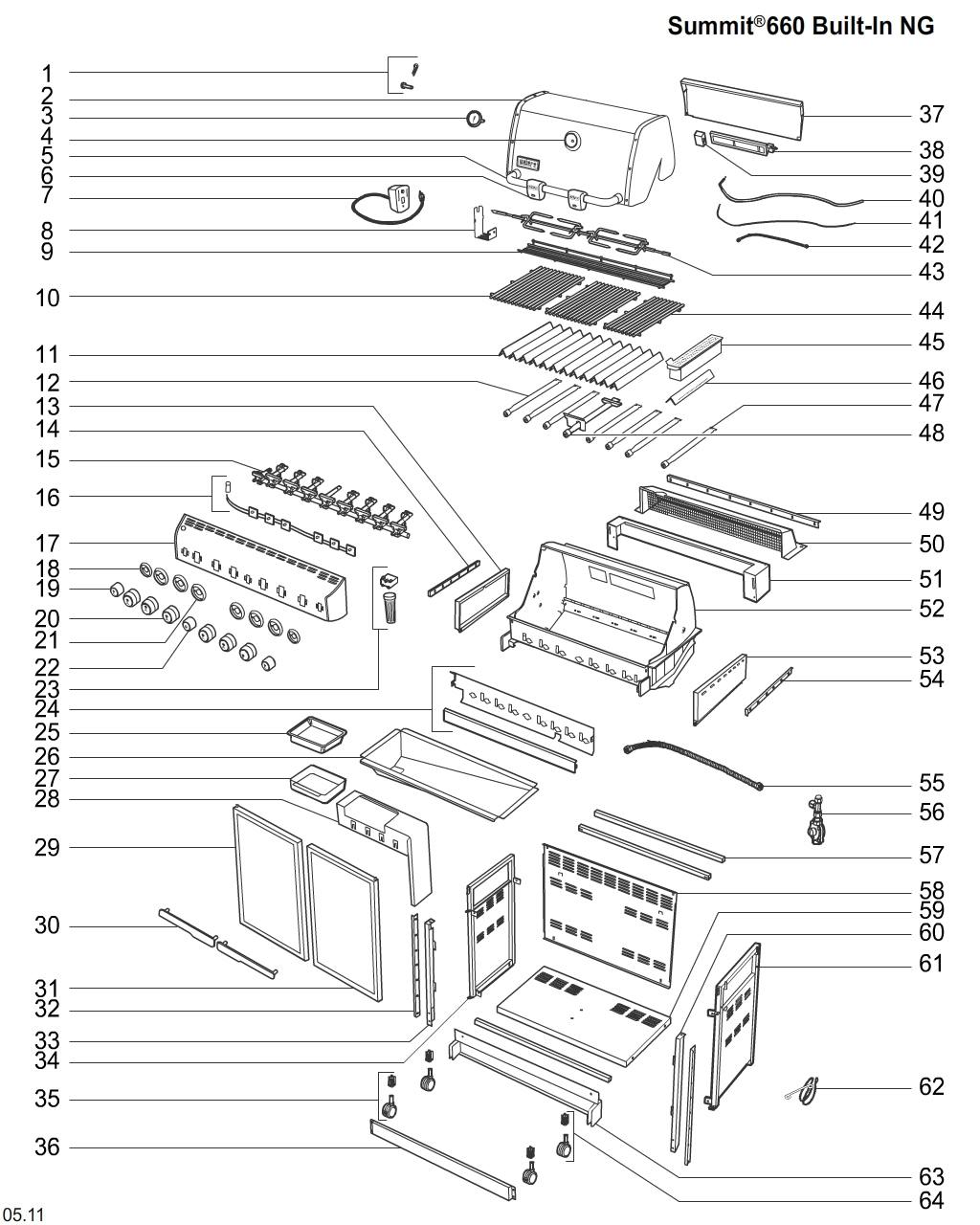

1
|
70302
|
Hardware kit, Summit Lid
|
|
|
2
|
66380
|
Lid assembly, SS, Summit 600 series
|
|
|
2
|
66513
|
Logo plate, SS
|
Shop Now$14.99
|
|
3
|
67088
|
Thermometer, '18
|
Shop Now$19.99
|
|
4
|
67717
|
Bezel for Genesis/Summit, '07
|
|
|
5
|
70369
|
Handle with bezels/spacers/hardware, Summit 600 series
|
Shop Now$56.99
|
|
5
|
65908
|
Hardware pack for handle
|
|
|
6
|
69273
|
Handle light
|
Shop Now$40.49
|
|
7
|
65579
|
Rotisserie motor, Type B, '15
|
Shop Now$57.99
|
|
8
|
70888
|
Plastic latch w/spring
|
|
|
8
|
70305
|
Bracket for rotisserie motor, with hardware
|
|
|
9
|
70190
|
Warming rack, Summit 600 '07
|
Shop Now$62.99
|
|
10
|
70372
|
Rod-style grate, SS, 11.8", qty. 1
|
|
|
10
|
67552
|
Set of stainless steel grates, Summit 640/650/660/670
|
Shop Now$398.99
|
|
11
|
70375
|
Flavorizer bars, SS, set of 4
|
|
|
11
|
67670
|
Stainless steel flavorizer bars, full set, Summit 640/650/660/670
|
Shop Now$128.99
|
|
12
|
67558
|
Burner tube kit, Summit 660/670
|
Shop Now$121.99
|
|
12
|
70306
|
Single burner tube for main burner, Summit '07, qty 1
|
|
|
13
|
85598
|
Side top panel for LHS, Summit 460/660 built-in, '11
|
|
|
14
|
85619
|
Top trim for LHS, Summit 460/660 built-in series, '11
|
|
|
15
|
88067
|
Manifold hardware, Summit '07
|
|
|
15
|
79177
|
NG manifold assembly, Summit E/S 660/670
|
|
|
16
|
70189
|
Momentary light switch, Summit '11
|
Shop Now$22.99
|
|
16
|
70882
|
Wiring harness, Summit 670
|
|
|
17
|
88231
|
Hardware kit for control panel, Summit '11
|
|
|
17
|
66329
|
Control panel, Summit 670, '17
|
|
|
18
|
88208
|
Hardware for bezels/control panel
|
|
|
18
|
70883
|
Small bezel w/fasteners, Summit 470/670
|
|
|
19
|
70378
|
Control knob for IR burner/smoker burner, qty 1
|
Shop Now$14.99
|
|
20
|
91538
|
Lighted control knob assembly, qty 2 (2012 and later models)
|
|
|
20
|
67692
|
Control Knob Kit, Summit 660/670
|
Shop Now$99.99
|
|
21
|
70318
|
Bezel for main burners with hardware
|
|
|
21
|
88208
|
Hardware for bezels/control panel
|
|
|
22
|
70868
|
Sear knob assembly
|
Shop Now$18.99
|
|
23
|
70879
|
Battery pack head
|
|
|
23
|
70880
|
Battery pack housing
|
|
|
24
|
88210
|
Hardware for burner tubes, Genesis/Summit '07
|
|
|
24
|
70874
|
Heat shield/water baffle, Summit 670
|
|
|
25
|
6498
|
Drip pan (qty 10) Large Grills
|
Shop Now$15.49
|
|
26
|
70113
|
Grease tray, Summit 600 '11, SS
|
|
|
27
|
70379
|
Catch pan kit
|
Shop Now$23.99
|
|
28
|
70324
|
Tank blocker, Summit 600 series
|
|
|
28
|
88063
|
Hardware for tank blocker
|
|
|
29
|
91357
|
Door magnet
|
|
|
29
|
66337
|
LHS door assembly, SS, S-660 '17
|
|
|
30
|
70327
|
Door handles with hardware
|
Shop Now$57.99
|
|
31
|
91357
|
Door magnet
|
|
|
31
|
66275
|
RHS door assembly, SS, S-660 '17
|
|
|
32
|
85618
|
Front trim, Summit 460/660 built-in series, '11
|
|
|
33
|
85636
|
Hardware (10-32 x .375 philips pan head screw, qty 4)
|
|
|
33
|
85596
|
Left front trim piece
|
|
|
34
|
79494
|
LHS frame assembly, Summit E/S 400-600 series, '12
|
|
|
34
|
70332
|
Adjustable door hinge
|
|
|
35
|
79500
|
Locking caster, Genesis (2012-2016), Summit (2012-2019)
|
Shop Now$29.99
|
|
36
|
85588
|
Front bottom panel, Summit 660 built-in, '11
|
|
|
37
|
70392
|
Hardware for IR cover
|
|
|
37
|
67513
|
IR cover, Summit 6 burner, black
|
|
|
38
|
70389
|
IR burner with bracket
|
|
|
38
|
70385
|
NG Orifice for IR burner, with nut
|
|
|
39
|
70338
|
Cover box for IR burner
|
|
|
40
|
6021713
|
NUT M8 X 1 HEX BRASS
|
|
|
40
|
70390
|
Thermocouple with electrode and wire
|
|
|
41
|
70390
|
Thermocouple with electrode and wire
|
|
|
41
|
6021713
|
NUT M8 X 1 HEX BRASS
|
|
|
42
|
70398
|
Gas line for IR burner, 64"
|
|
|
43
|
70380
|
Screws for rotisserie forks, qty 4
|
|
|
43
|
84116
|
Rotisserie hardware for tuckaway rotisserie, w/forks, '10
|
|
|
43
|
80647
|
Rotisserie shaft, Summit E/S 600 series, '12
|
|
|
44
|
70373
|
Rod-style grate, SS, 8.1", qty. 1
|
|
|
45
|
70381
|
Smoker box assembly
|
|
|
46
|
70187
|
Chipper grate, Summit '07 smoker
|
|
|
47
|
70307
|
Smoker burner tube, Summit '07
|
|
|
48
|
70866
|
Sear burner tube kit, Summit 670
|
|
|
49
|
85654
|
Rear trim, Summit S-660 built-in, '11
|
|
|
50
|
85636
|
Hardware (10-32 x .375 philips pan head screw, qty 4)
|
|
|
50
|
85638
|
Rear vent housing, Summit 660 built-in
|
|
|
51
|
85636
|
Hardware (10-32 x .375 philips pan head screw, qty 4)
|
|
|
51
|
85594
|
Rear top panel, Summit 660 built-in, '11
|
|
|
52
|
64849
|
Flavorizer bar brackets, Summit cookbox 6 burner
|
|
|
52
|
64847
|
Cookbox, Summit 660/670 '13
|
|
|
52
|
60600
|
Hardware for cookbox, Summit '10
|
|
|
52
|
70339
|
Silicone bumpers, quantity 4
|
|
|
53
|
85599
|
Side top panel for RHS, Summit 460/660 built-in, '11
|
|
|
54
|
85620
|
Top trim for RHS, Summit 460/660 built-in series, '11
|
|
|
55
|
97840
|
Corrugated gas line for Summit built-in grill models.
|
|
|
56
|
82795
|
NG bulkhead assembly, Summit built-in, US
|
|
|
57
|
62776
|
Hardware for frame/rear panel, Genesis '11
|
|
|
57
|
70351
|
Frame connector and hardware, Summit 6 burner
|
|
|
58
|
70354
|
Rear panel, LP Summit 600 series
|
|
|
58
|
67762
|
Hardware kit for bottom panel
|
|
|
59
|
91316
|
Bottom panel, Summit Platinum 6 burner NG, '10
|
|
|
59
|
67762
|
Hardware kit for bottom panel
|
|
|
60
|
85597
|
Right front trim piece
|
|
|
60
|
85636
|
Hardware (10-32 x .375 philips pan head screw, qty 4)
|
|
|
61
|
79498
|
RHS frame assembly, Summit E/S 400-600 NG, export
|
|
|
61
|
70332
|
Adjustable door hinge
|
|
|
62
|
81544
|
Match holder
|
|
|
63
|
85590
|
Rear bottom panel, Summit 660 built-in, '11
|
|
|
64
|
79499
|
Caster w/out lock, Genesis (2012-2016), Summit (2012-2019)
|
Shop Now$29.99
|
|
410
|
48928
|
Literature Kit, Summit 660 built-in NG, US/CA/MX '15
|
|
|
410
|
48592
|
Literature Kit, Summit 660 NG Built-in '16
|
|
|
410
|
56826
|
Addendum for Mexico (Required for Mexico only)
|
|
|
410
|
48534
|
Installation Guide, Summit 460/660 NG Built-in
|
|
|
410
|
56574
|
Literature kit, Summit 660 built-in NG, '11
|
|
|
470
|
60600
|
Hardware for cookbox, Summit '10
|
|
|
470
|
70380
|
Screws for rotisserie forks, qty 4
|
|
|
470
|
84272
|
Hardware for Summit built-in series, '11
|
|
|
470
|
88067
|
Manifold hardware, Summit '07
|
|
|
470
|
88211
|
Retainer clip for thermocouple/wires
|
|
|
470
|
67762
|
Hardware kit for bottom panel
|
|
|
470
|
84116
|
Rotisserie hardware for tuckaway rotisserie, w/forks, '10
|
|
|
470
|
88063
|
Hardware for tank blocker
|
|
|
470
|
88210
|
Hardware for burner tubes, Genesis/Summit '07
|
|
|
470
|
88231
|
Hardware kit for control panel, Summit '11
|
|
|
470
|
62776
|
Hardware for frame/rear panel, Genesis '11
|
|
|
470
|
70392
|
Hardware for IR cover
|
|
|
470
|
85636
|
Hardware (10-32 x .375 philips pan head screw, qty 4)
|
|
|
470
|
88208
|
Hardware for bezels/control panel
|
|
|
470
|
88212
|
Hardware for bulkhead, Summit '07
|
|
|
480
|
70379
|
Catch pan kit
|
Shop Now$23.99
|
|
510
|
7421
|
Weber Original Gourmet BBQ System Griddle
|
Shop Now$59.49
|
|
510
|
7615
|
Weber Elevations Tiered Cooking System Grill Rack and Skewer Set
|
|
|
510
|
7618
|
Weber Elevations Tiered Cooking System 4-Piece Skewer Set
|
|
|
510
|
8838
|
Weber Original Gourmet BBQ System Poultry Roaster
|
Shop Now$72.99
|
|
510
|
83004
|
Built in Summit Dual Side Burner NG
|
|
|
510
|
7404
|
Griddle for Summit E/S 420/670
|
Shop Now$106.49
|
|
510
|
7585
|
Gourmet BBQ System Cooking Grate, Summit series
|
|
|
510
|
7617
|
Weber Elevations Tiered Cooking System Expansion Rack
|
|
|
510
|
8836
|
Weber Original Gourmet BBQ System Pizza Stone
|
Shop Now$59.49
|
|
510
|
21322
|
NG side burner for Summit Platinum Built-in
|
|
|
510
|
6498
|
Drip pan (qty 10) Large Grills
|
Shop Now$15.49
|
|
510
|
7577
|
Weber Style Premium Cast-Iron Plancha Summit 400/600 Series
|
|
|
510
|
7616
|
Weber Elevations Tiered Cooking System Basket with Frame
|
|
|
510
|
8834
|
Weber Original Gourmet BBQ System Sear Grate
|
Shop Now$59.49
|
|
510
|
8841
|
Weber Original Gourmet BBQ System Ebelskiver - discontinued
|
|
|
510
|
30174499
|
Cover for Summit 600 Built-in models
|
|
