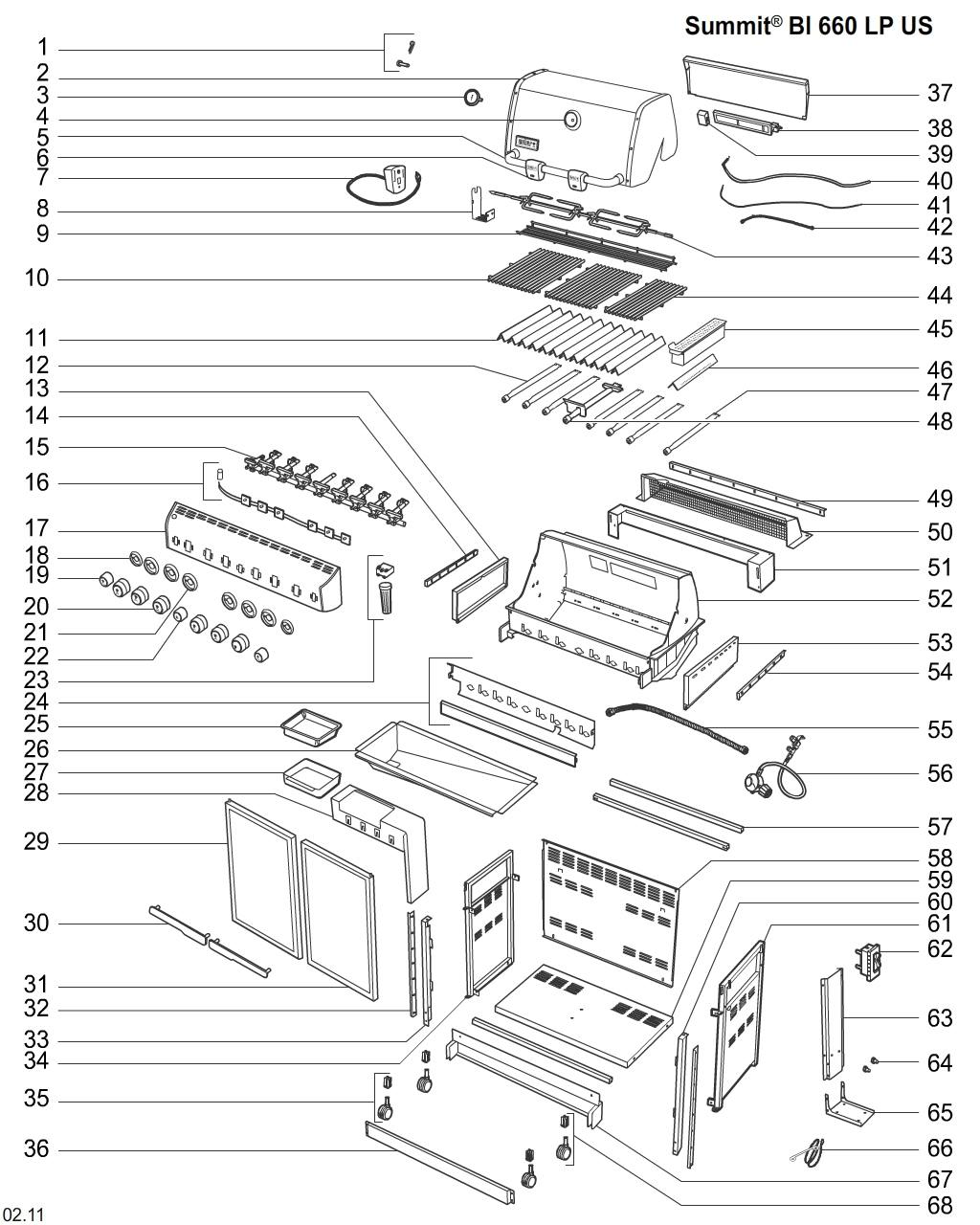

  • Schematic Image 97360001
  • Summit S-660 Built-In LP SS
  • 97360001

Additional Parts

Seq Part # Description Available Online
A 56573 Literature kit, Summit 660 built-in LP, '11
B 60600 Hardware for cookbox, Summit '10
B 70392 Hardware for IR cover
B 84116 Rotisserie hardware for tuckaway rotisserie, w/forks, '10
B 88063 Hardware for tank blocker
B 88208 Hardware for bezels/control panel
B 88231 Hardware kit for control panel, Summit '11
A 48927 Literature Kit, Summit 660 built-in LP, US/CA/MX '15
B 42446 Hardware for LP Summit Built-in Kit
B 67762 Hardware kit for bottom panel
A 48591 Literature Kit, Summit 660 LP Built-in
A 56826 Addendum for Mexico (Required for Mexico only)
B 62776 Hardware for frame/rear panel, Genesis '11
B 85636 Hardware (10-32 x .375 philips pan head screw, qty 4)
B 88067 Manifold hardware, Summit '07
B 88212 Hardware for bulkhead, Summit '07
B 84272 Hardware for Summit built-in series, '11
B 88065 Glide buttons and hardware
B 88210 Hardware for burner tubes, Genesis/Summit '07
1 70302 Hardware kit, Summit Lid
2 66513 Logo plate, SS Shop Now$14.99
2 66380 Lid assembly, SS, Summit 600 series
3 67088 Thermometer, '18 Shop Now$19.99
4 67717 Bezel for Genesis/Summit, '07
5 65908 Hardware pack for handle
5 70369 Handle with bezels/spacers/hardware, Summit 600 series Shop Now$56.99
6 69273 Handle light Shop Now$40.49
7 65579 Rotisserie motor, Type B, '15 Shop Now$57.99
8 70888 Plastic latch w/spring
8 70305 Bracket for rotisserie motor, with hardware
9 70190 Warming rack, Summit 600 '07 Shop Now$62.99
10 70372 Rod-style grate, SS, 11.8", qty. 1
10 67552 Set of stainless steel grates, Summit 640/650/660/670 Shop Now$398.99
11 67670 Stainless steel flavorizer bars, full set, Summit 640/650/660/670 Shop Now$128.99
11 70375 Flavorizer bars, SS, set of 4
12 70306 Single burner tube for main burner, Summit '07, qty 1
12 67558 Burner tube kit, Summit 660/670
13 85598 Side top panel for LHS, Summit 460/660 built-in, '11
14 85619 Top trim for LHS, Summit 460/660 built-in series, '11
15 79175 LP manifold assembly, Summit 670/Summit Grill Center
15 88067 Manifold hardware, Summit '07
16 70882 Wiring harness, Summit 670
16 70189 Momentary light switch, Summit '11 Shop Now$22.99
17 88231 Hardware kit for control panel, Summit '11
17 66329 Control panel, Summit 670, '17
18 70883 Small bezel w/fasteners, Summit 470/670
18 88208 Hardware for bezels/control panel
19 70378 Control knob for IR burner/smoker burner, qty 1 Shop Now$14.99
20 67692 Control Knob Kit, Summit 660/670 Shop Now$99.99
20 91538 Lighted control knob assembly, qty 2 (2012 and later models)
21 88208 Hardware for bezels/control panel
21 70318 Bezel for main burners with hardware
22 70868 Sear knob assembly Shop Now$18.99
23 70880 Battery pack housing
23 70879 Battery pack head
24 88210 Hardware for burner tubes, Genesis/Summit '07
24 70874 Heat shield/water baffle, Summit 670
25 6498 Drip pan (qty 10) Large Grills Shop Now$15.49
26 70113 Grease tray, Summit 600 '11, SS
27 70379 Catch pan kit Shop Now$23.99
28 70324 Tank blocker, Summit 600 series
28 88063 Hardware for tank blocker
29 91357 Door magnet
29 66337 LHS door assembly, SS, S-660 '17
30 70327 Door handles with hardware Shop Now$57.99
31 91357 Door magnet
31 66275 RHS door assembly, SS, S-660 '17
32 85618 Front trim, Summit 460/660 built-in series, '11
33 85636 Hardware (10-32 x .375 philips pan head screw, qty 4)
33 85596 Left front trim piece
34 79494 LHS frame assembly, Summit E/S 400-600 series, '12
34 70332 Adjustable door hinge
35 79500 Locking caster, Genesis (2012-2016), Summit (2012-2019) Shop Now$29.99
36 85588 Front bottom panel, Summit 660 built-in, '11
37 67513 IR cover, Summit 6 burner, black
37 70392 Hardware for IR cover
38 70389 IR burner with bracket
38 70384 LP Orifice for IR burner, with nut, 30mb
39 70338 Cover box for IR burner
40 6021713 NUT M8 X 1 HEX BRASS
40 70390 Thermocouple with electrode and wire
41 6021713 NUT M8 X 1 HEX BRASS
41 70390 Thermocouple with electrode and wire
42 70398 Gas line for IR burner, 64"
43 84116 Rotisserie hardware for tuckaway rotisserie, w/forks, '10
43 80647 Rotisserie shaft, Summit E/S 600 series, '12
43 70380 Screws for rotisserie forks, qty 4
44 70373 Rod-style grate, SS, 8.1", qty. 1
45 70381 Smoker box assembly
46 70187 Chipper grate, Summit '07 smoker
47 70307 Smoker burner tube, Summit '07
48 70866 Sear burner tube kit, Summit 670
49 85654 Rear trim, Summit S-660 built-in, '11
50 85638 Rear vent housing, Summit 660 built-in
50 85636 Hardware (10-32 x .375 philips pan head screw, qty 4)
51 85594 Rear top panel, Summit 660 built-in, '11
51 85636 Hardware (10-32 x .375 philips pan head screw, qty 4)
52 64847 Cookbox, Summit 660/670 '13
52 60600 Hardware for cookbox, Summit '10
52 70339 Silicone bumpers, quantity 4
52 64849 Flavorizer bar brackets, Summit cookbox 6 burner
53 85599 Side top panel for RHS, Summit 460/660 built-in, '11
54 85620 Top trim for RHS, Summit 460/660 built-in series, '11
55 97840 Corrugated gas line for Summit built-in grill models.
56 60395 LP bulkhead assembly, Summit Built-in, USA
56 65572 QCC1 Hose & Regulator LP, 37"
57 70351 Frame connector and hardware, Summit 6 burner
57 62776 Hardware for frame/rear panel, Genesis '11
58 70354 Rear panel, LP Summit 600 series
58 67762 Hardware kit for bottom panel
59 67762 Hardware kit for bottom panel
59 91316 Bottom panel, Summit Platinum 6 burner NG, '10
60 85636 Hardware (10-32 x .375 philips pan head screw, qty 4)
60 85597 Right front trim piece
61 79498 RHS frame assembly, Summit E/S 400-600 NG, export
61 70332 Adjustable door hinge
62 99243 Tank scale
63 85656 Tank stand upright
64 88065 Glide buttons and hardware
65 85655 Tank stand base
66 81544 Match holder
67 85636 Hardware (10-32 x .375 philips pan head screw, qty 4)
67 85590 Rear bottom panel, Summit 660 built-in, '11
68 79499 Caster w/out lock, Genesis (2012-2016), Summit (2012-2019) Shop Now$29.99
410 48927 Literature Kit, Summit 660 built-in LP, US/CA/MX '15
410 48591 Literature Kit, Summit 660 LP Built-in
410 56826 Addendum for Mexico (Required for Mexico only)
410 56573 Literature kit, Summit 660 built-in LP, '11
470 42446 Hardware for LP Summit Built-in Kit
470 67762 Hardware kit for bottom panel
470 84116 Rotisserie hardware for tuckaway rotisserie, w/forks, '10
470 88063 Hardware for tank blocker
470 88208 Hardware for bezels/control panel
470 88212 Hardware for bulkhead, Summit '07
470 62776 Hardware for frame/rear panel, Genesis '11
470 70392 Hardware for IR cover
470 85636 Hardware (10-32 x .375 philips pan head screw, qty 4)
470 88067 Manifold hardware, Summit '07
470 88211 Retainer clip for thermocouple/wires
470 60600 Hardware for cookbox, Summit '10
470 70380 Screws for rotisserie forks, qty 4
470 84272 Hardware for Summit built-in series, '11
470 88065 Glide buttons and hardware
470 88210 Hardware for burner tubes, Genesis/Summit '07
470 88231 Hardware kit for control panel, Summit '11
480 70379 Catch pan kit Shop Now$23.99
510 6498 Drip pan (qty 10) Large Grills Shop Now$15.49
510 7577 Weber Style Premium Cast-Iron Plancha Summit 400/600 Series
510 7616 Weber Elevations Tiered Cooking System Basket with Frame
510 8834 Weber Original Gourmet BBQ System Sear Grate Shop Now$59.49
510 8841 Weber Original Gourmet BBQ System Ebelskiver - discontinued
510 30174499 Cover for Summit 600 Built-in models
510 7421 Weber Original Gourmet BBQ System Griddle Shop Now$59.49
510 7615 Weber Elevations Tiered Cooking System Grill Rack and Skewer Set
510 7618 Weber Elevations Tiered Cooking System 4-Piece Skewer Set
510 8838 Weber Original Gourmet BBQ System Poultry Roaster Shop Now$72.99
510 83003 Built in Summit Dual Side Burner LP
510 7404 Griddle for Summit E/S 420/670
510 7585 Gourmet BBQ System Cooking Grate, Summit series
510 7617 Weber Elevations Tiered Cooking System Expansion Rack
510 8836 Weber Original Gourmet BBQ System Pizza Stone Shop Now$59.49
510 21321 LP side burner for Summit Platinum Built-in
