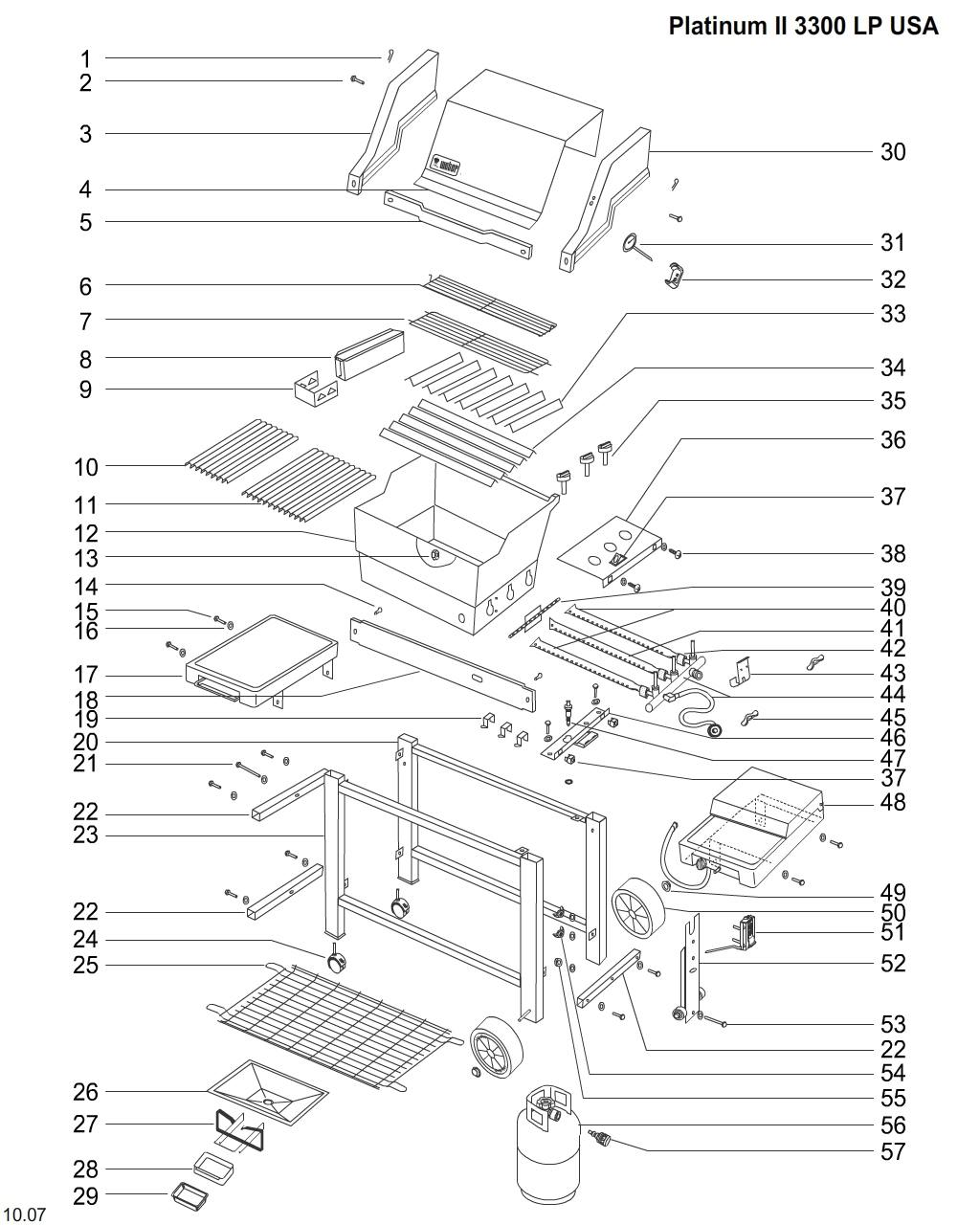

B
|
97460
|
Step guide for liquid propane Platinum II grills. USA version.
|
|
|
A
|
96175
|
Operating guide for the liquid propane Platinum II model grills. USA version.
|
|
|
1
|
80158
|
Shroud hardware for year 2000 lid assembly with stud design.
|
|
|
2
|
80158
|
Shroud hardware for year 2000 lid assembly with stud design.
|
|
|
4
|
60542
|
Lid assembly, Genesis B, mica black, SS handle
|
|
|
4A
|
80158
|
Shroud hardware for year 2000 lid assembly with stud design.
|
|
|
4
|
60582
|
Lid assembly, Genesis/Spirit, black
|
|
|
4B
|
90501
|
Weber logo label and fasteners
|
|
|
5
|
97785
|
Hardware for lid handle for Silver B-C,Genesis, Spirit, and Platinum Gas Grills.
|
|
|
5A
|
80159
|
Hardware pack for year 2000 lid and handle assembly with stud design/rotisserie bracket
|
|
|
6
|
80632
|
Warm-up basket, '10
|
Shop Now$43.99
|
|
7
|
80633
|
Warming rack, Silver/Gold/Plat B/C/Spirit 300 series
|
Shop Now$43.99
|
|
9
|
48968080
|
Smoker flue, enameled - discontinued
|
|
|
10
|
9866
|
Porcelain enameled cooking grates, Genesis 4-5000 series (Qty 2)
|
|
|
10
|
1174100
|
Porcelain enameled cooking grate, Genesis Jr. & also used with smoker attachment (Qty 1)
|
|
|
11
|
9866
|
Porcelain enameled cooking grates, Genesis 4-5000 series (Qty 2)
|
|
|
12A
|
97783
|
Bottom tray rails w/hardware
|
|
|
13
|
1309
|
Hex nut 1/4 x 20 inch Keps nut
|
|
|
14
|
62196
|
Black plastic button to attach side panel.
|
|
|
15
|
4086958
|
Hexhead screw (bolt) 1/4-20 x 1/2 inch. Black.
|
|
|
16
|
87403
|
1/4" Flat nylon washer, black
|
|
|
17F
|
40877450
|
Guide Screw for burner tube mounting rails (guide screw)
|
|
|
17H
|
87414
|
Hex nut 5/16-18 inch, zinc
|
|
|
17G
|
87415
|
Flat washer 5/16 inch, SAE
|
|
|
19
|
99835
|
Tool holder (qty. 1)
|
|
|
21
|
4086974
|
Hexhead bolt 1/4-20 x 2 inch. Black.
|
|
|
22
|
97231
|
Frame connector for Platinum II grills. Painted.
|
|
|
27
|
99253
|
Catch pan holder (packaged)
|
Shop Now$22.99
|
|
28
|
93305
|
Aluminum catch pan kit
|
Shop Now$13.99
|
|
29
|
6415
|
Aluminum drip pans - small (10 pack)
|
Shop Now$10.99
|
|
31
|
62538
|
Thermometer, dual-purpose.
|
Shop Now$9.99
|
|
32A
|
4086950
|
Screw #8-32x3/8 inch hex head.
|
|
|
33
|
65901
|
Set of SS Flavorizer Bars, Genesis 1-5500
|
|
|
34
|
65901
|
Set of SS Flavorizer Bars, Genesis 1-5500
|
|
|
37
|
92510
|
Rocker switch. Grey. (1996-present).
|
|
|
38
|
668
|
Control panel plugs with screws. 1/4-inch.
|
|
|
39
|
20428
|
Burner tube kit, Genesis 1-5500, Platinum, Genesis Gold 2000-2001, Genesis Platinum
|
Shop Now$77.99
|
|
40
|
20428
|
Burner tube kit, Genesis 1-5500, Platinum, Genesis Gold 2000-2001, Genesis Platinum
|
Shop Now$77.99
|
|
41
|
20428
|
Burner tube kit, Genesis 1-5500, Platinum, Genesis Gold 2000-2001, Genesis Platinum
|
Shop Now$77.99
|
|
43
|
4089600
|
Manifold bracket for Genesis and Platinum series gas grills
|
|
|
44A
|
65570
|
QCC1 Hose & Regulator LP, 21"
|
|
|
44
|
65570
|
QCC1 Hose & Regulator LP, 21"
|
|
|
44
|
63196
|
Retainer clip
|
|
|
45
|
97786
|
Manifold hardware for Genesis, Spirit, and Platinum Gas Grills.
|
|
|
47A
|
48826420
|
Igniter switch (includes push button)
|
|
|
47E
|
70643
|
Ignition chamber assembly, 02
|
|
|
47
|
900
|
Igniter kit for Genesis, Spirit and Platinum model year 2000 grills.
|
Shop Now$18.99
|
|
47B
|
40826414
|
Igniter installation nut.
|
|
|
49
|
987101
|
Replacement hubcaps (pack of 3)
|
|
|
50
|
63050
|
Wheel, 8" diameter
|
|
|
51
|
99243
|
Tank scale
|
|
|
53
|
4086938
|
Hexhead bolt 1/4-20 x 1 3/4 inch
|
|
|
54
|
87901
|
Wing nut 1/4-20 inch. Black.
|
|
|
55
|
87503
|
Hex nut 1/4-20 inch, zinc
|
|
|
410
|
55354
|
Instruction Sheet QCC1 Hose Replacement
|
|
|
410
|
96175
|
Operating guide for the liquid propane Platinum II model grills. USA version.
|
|
|
410
|
50783
|
Instruction sheet. Fuel scale assembly.
|
|
|
410
|
63335
|
Instruction sheet. Quick disconnect hose and regulator replacement.
|
|
|
410
|
97460
|
Step guide for liquid propane Platinum II grills. USA version.
|
|
|
410
|
39906
|
Instruction sheet for ignition chamber.
|
|
|
410
|
55355
|
Instruction sheet for burner tube replacement, `02
|
|
|
410
|
97029
|
Instruction sheet for smoker for Summit 400-675
|
|
|
470
|
80159
|
Hardware pack for year 2000 lid and handle assembly with stud design/rotisserie bracket
|
|
|
470
|
97786
|
Manifold hardware for Genesis, Spirit, and Platinum Gas Grills.
|
|
|
470
|
80158
|
Shroud hardware for year 2000 lid assembly with stud design.
|
|
|
470
|
97785
|
Hardware for lid handle for Silver B-C,Genesis, Spirit, and Platinum Gas Grills.
|
|
|
470
|
668
|
Control panel plugs with screws. 1/4-inch.
|
|
|
470
|
97783
|
Bottom tray rails w/hardware
|
|
|
475
|
90259
|
Manifold (QCC1 type) for Platinum II and Genesis 3000 grills.
|
|
|
475
|
63419
|
Hose and Regulator (Quick disconnect). Spirit and Genesis series gas grills.
|
|
|
480
|
900
|
Igniter kit for Genesis, Spirit and Platinum model year 2000 grills.
|
Shop Now$18.99
|
|
480
|
20428
|
Burner tube kit, Genesis 1-5500, Platinum, Genesis Gold 2000-2001, Genesis Platinum
|
Shop Now$77.99
|
|
490
|
7639
|
Stainless steel rod cooking grates, 7mm, (Qty 2)
|
Shop Now$135.99
|
|
490
|
65906
|
Porcelain enameled steel cooking grates, (Qty 2)
|
Shop Now$56.99
|
|
490
|
7638
|
Porcelain enameled cast iron cooking grates, (Qty 2)
|
|
|
490
|
9866
|
Porcelain enameled cooking grates, Genesis 4-5000 series (Qty 2)
|
|
|
490
|
9861
|
SS cooking grates, Genesis 4-5500/Platinum B-C
|
|
|
490
|
1174100
|
Porcelain enameled cooking grate, Genesis Jr. & also used with smoker attachment (Qty 1)
|
|
|
495
|
9813
|
Porcelain enamel flavorizer bars for Genesis series grills.
|
|
|
495
|
7538
|
Set of stainless steel flavorizer bars for Genesis series grill
|
Shop Now$114.99
|
|
510
|
80632
|
Warm-up basket, '10
|
Shop Now$43.99
|
|
517
|
97341
|
Acorn nut for side burner of Platinum II/Summit Gas Grills.
|
|
|
518
|
97383
|
Hinge rod for side burner of Platinum/Summit Gas Grills.
|
|
|
519
|
97476
|
Spacer for side burner cover. 3/16 inch.
|
|
|
522
|
98210
|
Burner cap for Platinum II/Summit Gas Grill side burner.
|
|
|
524
|
97190
|
Burner assembly for side burner
|
|
|
527
|
98213
|
Burner base for Platinum II/Summit Gas Grill side burner.
|
|
|
527
|
97613
|
Screw, stainless steel, 10-32 x 3/8 inch. For side burner.
|
|
|
533
|
97352
|
Igniter wire, black, 18 Platinum side burner.
|
|
|
533
|
48826420
|
Igniter switch (includes push button)
|
|
|
533
|
40826414
|
Igniter installation nut.
|
|
|
537
|
40877450
|
Guide Screw for burner tube mounting rails (guide screw)
|
|
