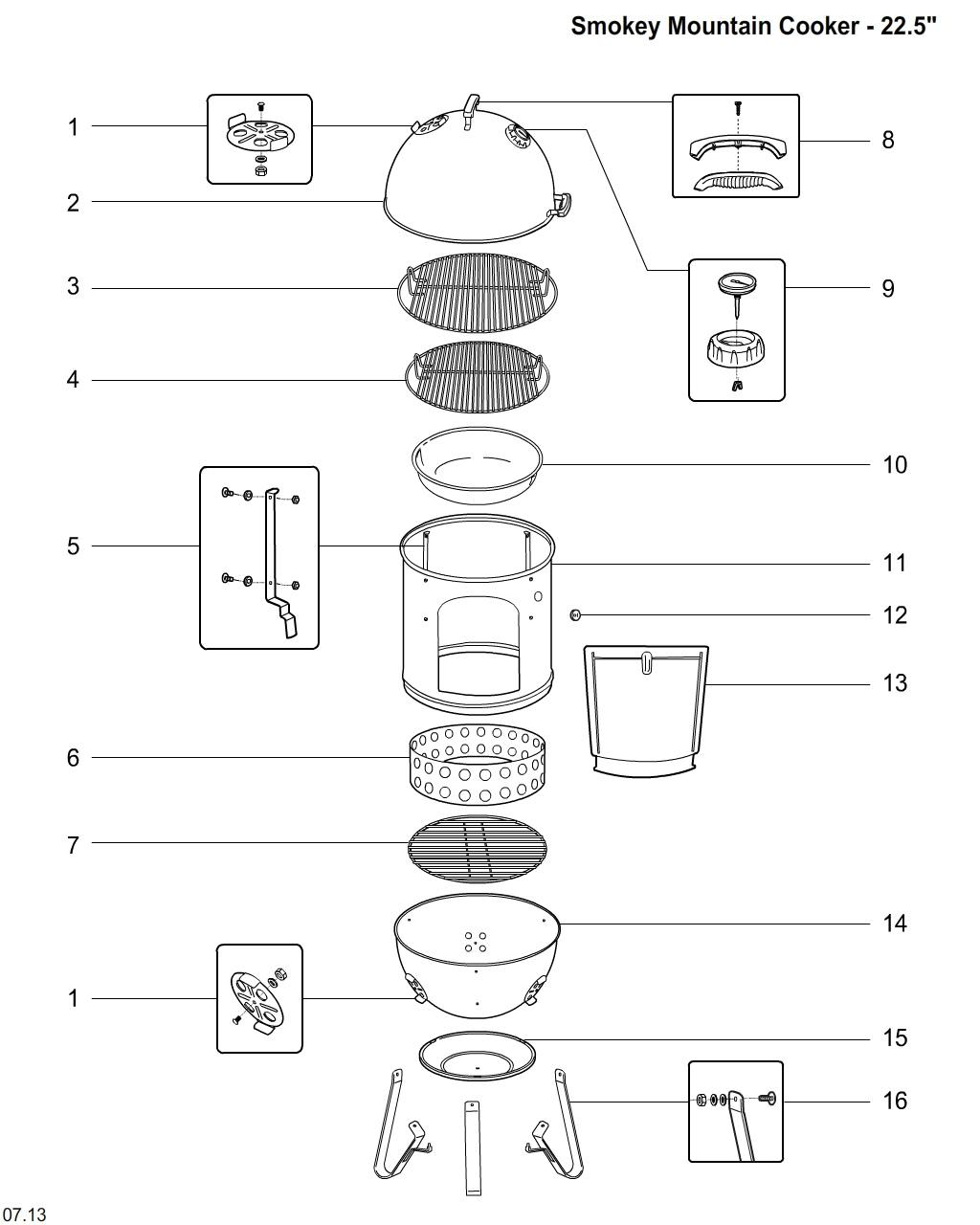

  • Schematic Image 731004
  • Smokey Mountain Cooker 57cm (Europe)
  • 731004

Additional Parts

Seq Part # Description Available Online
A 48608 Assembly/Owners Guide, SMC, C EU '15
W 83196 Hardware kit, SMC w/grommet '14
A 85113 Charcoal warranty addendum, Germany/Austria '14
Z 30173599 Cover for 22.5" SMC, black
1 63016 Damper kit, 22.5" Bar-B-Kettle & Smokey Mountain Cooker
2 63004 Lid assembly, 22.5" Smokey Mountain Cooker, black, '09
3 80630 Upper cooking grate, 22.5"
4 85041 Lower cooking grate, 22.5" SMC '14 Shop Now$48.99
5 63021 Smoker grate strap set, 22.5" Smokey Mountain Cooker
6 63008 Charcoal chamber, 22.5" Smokey Mountain Cooker
7 63014 Charcoal grate, 22.5" Smokey Mountain Cooker, '09 Shop Now$53.99
8 80671 Handle kit, charcoal, qty 1, '10 Shop Now$14.99
9 64862 Thermometer, 22.5" SMC, Europe '14
9 63026 Bezel for thermometer, 22.5" Smokey Mountain Cooker
10 63025 Water pan, 22.5" Smokey Mountain Cooker, '09
11 85040 Center ring, 22.5" Smokey Mountain Cooker, black, '14
12 85037 Grommet, gray, SMC
13 63019 Door assembly, 22.5" SMC Shop Now$67.99
14 63006 Bowl for 22.5" Smokey Mountain Cooker, black, '09
15 63017 Heat shield, 18.5"/22.5" Smokey Mountain Cooker, '09
16 63023 Leg kit, 22.5" Smokey Mountain Cooker, '09
