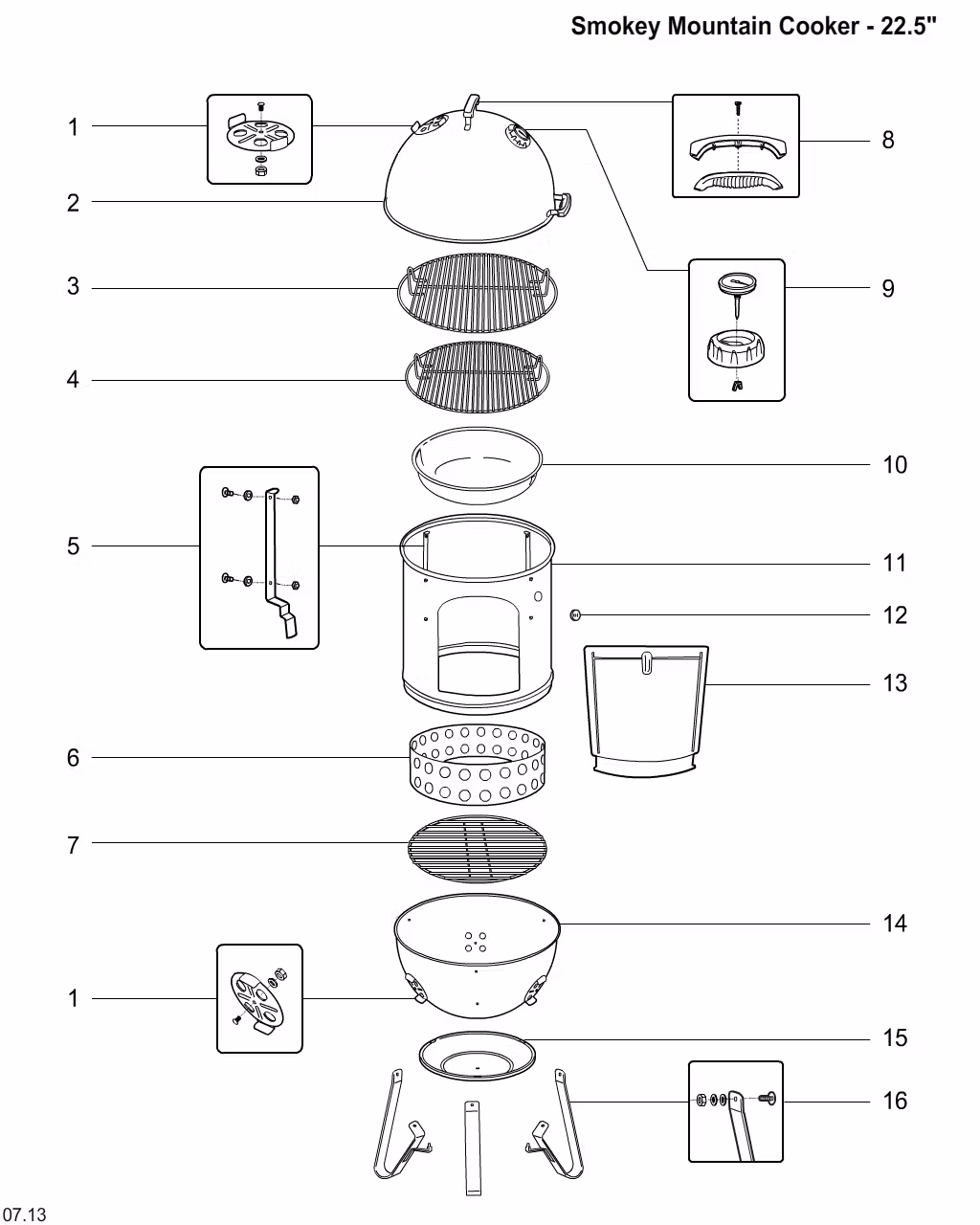

  • Schematic Image 731001
  • Smokey Mountain Cooker 22.5" w/Cover (2009-2012)
  • 731001

Additional Parts

Seq Part # Description Available Online
W 83196 Hardware kit, SMC w/grommet '14
A 48602 Assembly/Owners Guide, SMC, US/CA/MX '15
Z 30173599 Cover for 22.5" SMC, black
1 63016 Damper kit, 22.5" Bar-B-Kettle & Smokey Mountain Cooker
2 63004 Lid assembly, 22.5" Smokey Mountain Cooker, black, '09
3 80630 Upper cooking grate, 22.5"
4 85041 Lower cooking grate, 22.5" SMC '14 Shop Now$48.99
5 63021 Smoker grate strap set, 22.5" Smokey Mountain Cooker
6 63008 Charcoal chamber, 22.5" Smokey Mountain Cooker Shop Now$62.99
7 63014 Charcoal grate, 22.5" Smokey Mountain Cooker, '09 Shop Now$53.99
8 80671 Handle kit, charcoal, qty 1, '10 Shop Now$14.99
9 63029 Thermometer, 22.5" Smokey Mountain Cooker Shop Now$17.99
9 63026 Bezel for thermometer, 22.5" Smokey Mountain Cooker
10 63025 Water pan, 22.5" Smokey Mountain Cooker, '09 Shop Now$104.99
11 85040 Center ring, 22.5" Smokey Mountain Cooker, black, '14
12 85037 Grommet, gray, SMC
13 63019 Door assembly, 22.5" SMC Shop Now$67.99
14 63006 Bowl for 22.5" Smokey Mountain Cooker, black, '09
15 63017 Heat shield, 18.5"/22.5" Smokey Mountain Cooker, '09
16 63023 Leg kit, 22.5" Smokey Mountain Cooker, '09
410 48602 Assembly/Owners Guide, SMC, US/CA/MX '15
470 83196 Hardware kit, SMC w/grommet '14
480 63016 Damper kit, 22.5" Bar-B-Kettle & Smokey Mountain Cooker
480 80671 Handle kit, charcoal, qty 1, '10 Shop Now$14.99
480 63023 Leg kit, 22.5" Smokey Mountain Cooker, '09
510 30173599 Cover for 22.5" SMC, black
510 7474 Weber Original Hook Replacements
