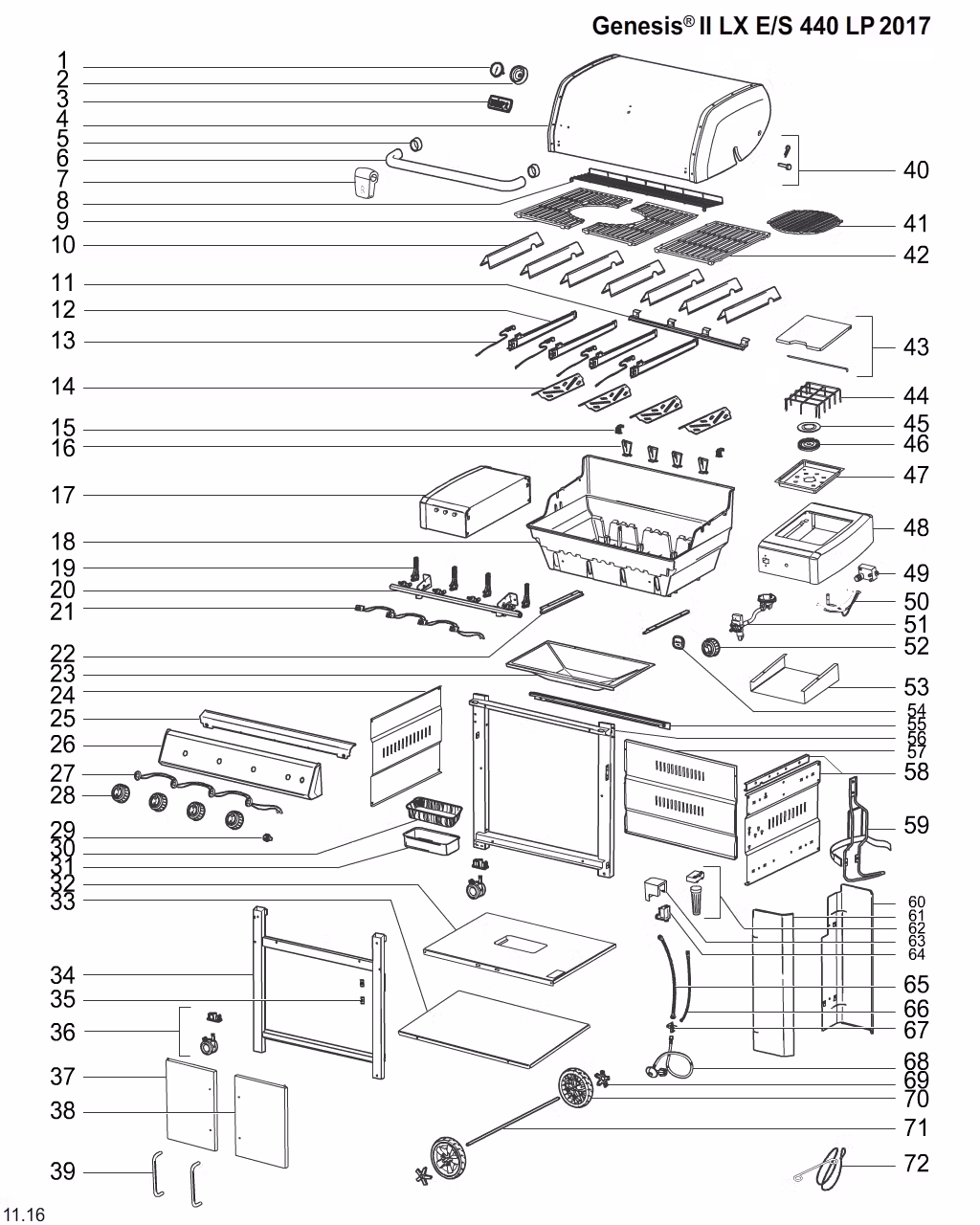

  • Schematic Image 62004175
  • Genesis II LX S-440 w/GBS LP SS (2017) (Central Europe)
  • 62004175

Additional Parts

Seq Part # Description Available Online
A 40421105 Literature kit, Genesis II 240/340/440/640, export
B 66438 Lid hardware, Genesis/Searwood
B 66683 Hardware for cookbox rails/brackets, Genesis II/LX series
B 66820 Hardware, handle, Genesis II LX
B 66823 Hardware, mid panel/scale/hanger
B 66914 Hardware for rear/bottom panel, Genesis II LX
A 40421127 Literature Kit, Genesis II 240/340/440/640, export
B 66679 Hardware, tank panel buttons
B 66806 Hardware, ignition module
B 66821 Torx wrench, L type
B 66824 Hardware for cookbox, Genesis II/II LX
B 73174 Igniter module cap w/battery, Genesis II LX series
B 66429 Hardware, door
B 66682 Hardware for wheels
B 66819 Hardware, frame/panels, Genesis II LX
B 66822 Hardware, manifold, Genesis II LX
B 66830 Wire clips (qty 3)
B 74471 Literature Kit, Genesis II 240/340/440/640, export
1 67089 Thermometer, C/F, Genesis II, export
2 66049 Thermometer bezel, Genesis Shop Now$8.00
3 66282 Weber logo
4 67204 Lid assembly, Genesis II LX 4 burner, SS '18
4 66061 Lid bumpers (qty 2) Shop Now$11.99
5 66831 Handle bezel, Genesis II LX, '17
6 66820 Hardware, handle, Genesis II LX
6 66418 Lid handle, Genesis II LX 440
7 69274 Handle light (no batteries), Genesis/Summit
8 66800 Warming rack, SS, Genesis II LX 440
9 66093 Gourmet BBQ System porcelain enameled cast iron cooking grates, 400 series, export
10 66797 Stainless steel flavorizer bars, Genesis II LX 440 (qty 7) Shop Now$75.99
11 66168 Crossover tube, Genesis II 400 series, export '17
12 66666 Burner tubes, 29 mb, Genesis II LX, E/S-440/640 (qty 2)
13 66364 Igniter electrode w/wire, 51", blue
13 66362 Igniter electrode w/wire, 36", black
13 66833 Igniter electrode w/wire, 27", yellow
13 66363 Igniter electrode w/wire, 46", green
14 66686 Heat deflector, Genesis/Summit (qty 4) Shop Now$32.00
15 66683 Hardware for cookbox rails/brackets, Genesis II/LX series
15 69284 Warming rack bracket set
16 66683 Hardware for cookbox rails/brackets, Genesis II/LX series
16 66514 Burner Tube Clamp (qty 2), Genesis II
17 74471 Literature Kit, Genesis II 240/340/440/640, export
17 66530 LHS fixed table, Genesis LX, '17, EU E
17 74335 Pressure plates, Genesis II LX series (qty 2)
18 66824 Hardware for cookbox, Genesis II/II LX
18 66683 Hardware for cookbox rails/brackets, Genesis II/LX series
18 67412 Cookbox, Genesis II 410/415, '19
18 66822 Hardware, manifold, Genesis II LX
19 66357 Clip for ignition wire routing, round set (qty 2)
20 66489 Manifold assembly, LP, 29 mb, Genesis II LX 400 series, export
20 66822 Hardware, manifold, Genesis II LX
21 66414 Igniter harness, Genesis II LX 440
22 66028 Bottom tray rails, Genesis II E/SE series
22 66683 Hardware for cookbox rails/brackets, Genesis II/LX series
23 66037 Grease tray, Genesis II/LX E/SE-410/440 Shop Now$49.99
24 66766 LHS panel, Genesis II LX series
24 66819 Hardware, frame/panels, Genesis II LX
25 66823 Hardware, mid panel/scale/hanger
25 66230 Top trim for control panel, SS, Genesis II/LX 400 series
26 66461 Control panel assembly, Genesis II LX 440
26 66819 Hardware, frame/panels, Genesis II LX
27 66410 LED harness wire/clip assembly, Genesis II LX 440
28 66725 Rain boot for knobs, Genesis II LX (qty 2)
28 66754 Control knob kit, Genesis II LX (qty 2)
29 69282 Light/momentary switch, Genesis/Summit
30 6498 Drip pan (qty 10) Large Grills Shop Now$15.49
31 70379 Catch pan kit Shop Now$23.99
32 66422 Catch pan holder panel, Genesis II LX 440
32 66823 Hardware, mid panel/scale/hanger
32 83320 Door magnet
33 66085 Bottom panel, Genesis II LX 400 series, export '17
33 66914 Hardware for rear/bottom panel, Genesis II LX
34 66819 Hardware, frame/panels, Genesis II LX
34 66445 Front frame, Genesis II LX 400 series, export
35 66830 Wire clips (qty 3)
36 67070 Insert kit for casters, Genesis II LX
36 67067 Casters (qty 2) Shop Now$31.00
37 66424 LHS door assembly, SS, Genesis II LX S-440
37 66429 Hardware, door
38 66425 RHS door assembly, SS, Genesis II LX S-440
38 66429 Hardware, door
39 69285 Door handle w/bezels (qty 1)
39 66429 Hardware, door
40 66438 Lid hardware, Genesis/Searwood
41 64830 PECI cooking grate insert, Spirit w/GBS Shop Now$96.99
42 66093 Gourmet BBQ System porcelain enameled cast iron cooking grates, 400 series, export
43 66061 Lid bumpers (qty 2) Shop Now$11.99
43 66401 Side burner lid, Genesis II LX series
44 67307 Grate for side burner, Genesis II '19
45 66400 Side burner cap
46 91173 Side burner ring
47 66397 Side burner tray, Genesis II LX series
48 66511 Side burner table, Genesis II LX series
48 74471 Literature Kit, Genesis II 240/340/440/640, export
48 66347 iGrill Plugs, Genesis II E/SE series (qty 2)
48 66830 Wire clips (qty 3)
48 66384 Side burner assembly, 29 mb, Genesis II LX, export
48 74335 Pressure plates, Genesis II LX series (qty 2)
49 66806 Hardware, ignition module
49 66259 Igniter module, Gen II 2B or Gen II/LX/Summit S/B
49 66394 Igniter kit for side burner, Genesis II LX, '17
50 66395 Igniter electrode w/wires, side burner, Genesis II LX series
51 73229 Brass hex nut
51 66387 Side burner valve assembly, 29 mb, Genesis II LX, export
52 66398 Control knob, side burner, Genesis II LX series Shop Now$16.00
53 66396 Heat/water deflector, side burner, Genesis II LX series
54 66344 iGrill cover
55 66457 Top trim for rear frame, SS, Genesis II/LX 440
55 66819 Hardware, frame/panels, Genesis II LX
56 66449 Rear frame, Genesis II LX 400 series, export
56 66819 Hardware, frame/panels, Genesis II LX
57 66914 Hardware for rear/bottom panel, Genesis II LX
57 66764 Rear panel, Genesis II LX 440
58 66985 RHS panel assembly, LP
58 66819 Hardware, frame/panels, Genesis II LX
58 66830 Wire clips (qty 3)
59 66823 Hardware, mid panel/scale/hanger
59 66257 Tank hanger w/strap, Genesis II LX series, export
59 66258 Tank hanger strap w/clasp, export
60 66217 Rear tank enclosure panel, Genesis II, export
60 66679 Hardware, tank panel buttons
61 66679 Hardware, tank panel buttons
61 67419 Front tank panel, Genesis II series
62 70880 Battery pack housing
62 67202 Battery pack head, Genesis II LX, '18
63 66358 Igniter module cover, Genesis II 210/310/410
64 66505 Igniter kit, Genesis II LX 440 Shop Now$103.99
64 67161 Conduit tube for igniter wires, black
64 66806 Hardware, ignition module
64 67693 Igniter wire conduit clamp, 3 pack
64 66260 Igniter module, Genesis II 310/410/340/440
64 66830 Wire clips (qty 3)
65 66496 Corrugated gas line, Genesis II LX 440/640
66 66519 Side burner gas line w/QD fitting, Genesis II LX series
67 66521 Bulkhead assembly, Genesis II LX 400/600 series, export
67 66823 Hardware, mid panel/scale/hanger
68 22222 Not supplied by Weber
69 67654 Wheel insert kit, Genesis II, '19
70 67445 Wheel w/insert, Genesis II, '19 Shop Now$29.99
71 66251 Axle w/hardware, Genesis II E/SE series
71 66682 Hardware for wheels
72 66534 Match holder assembly, Genesis LX, 440/640
