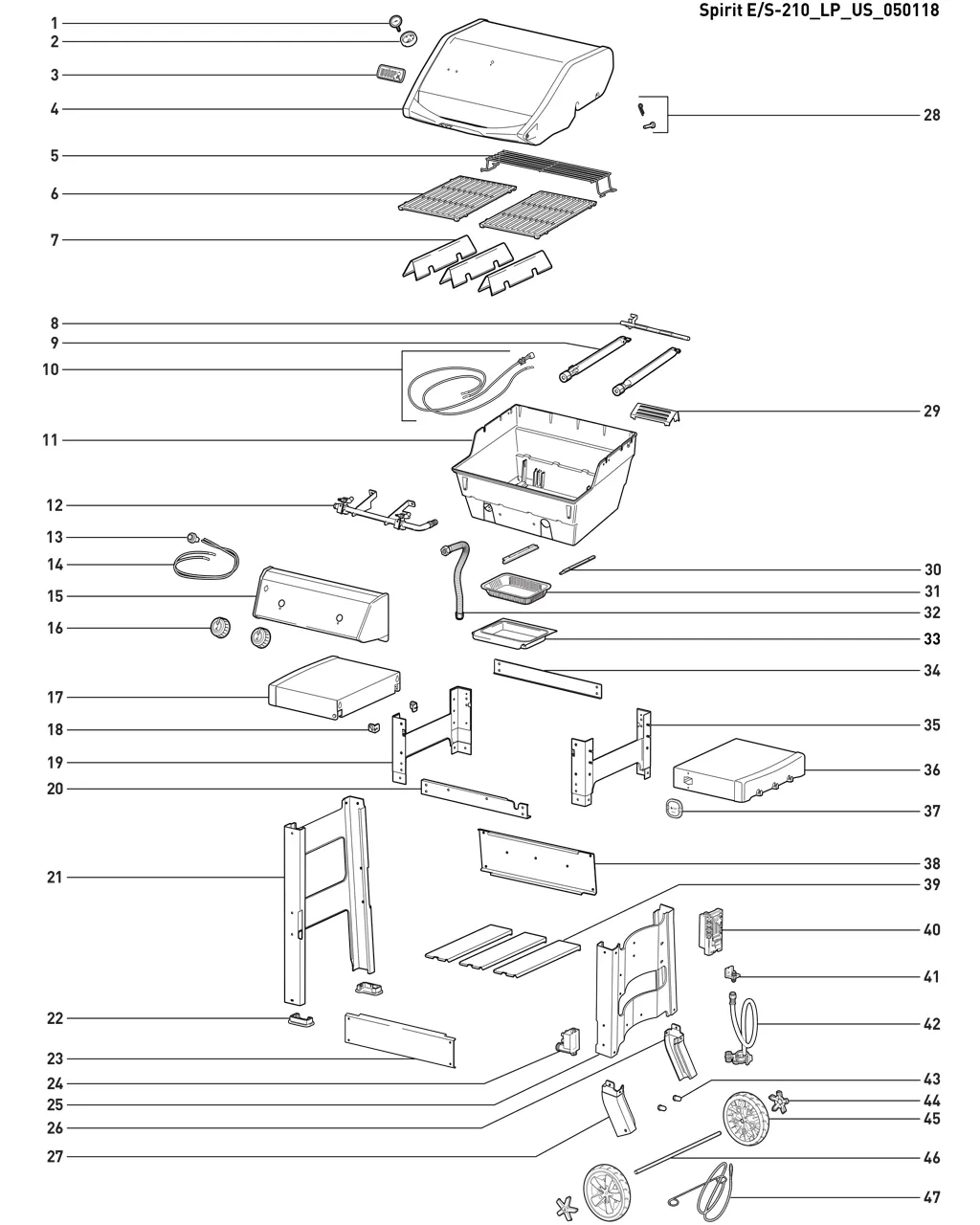

  • Schematic Image 44000001
  • Spirit II S-210 LP SS (2017) (US/CA/MX)
  • 44000001

Additional Parts

Seq Part # Description Available Online
A 41056447 Literature kit, Spirit II 210-310 LP
A 41056401 Literature kit, Spirit II 210/310 LP
1 67031 Thermometer, F/C Shop Now$26.99
2 67062 Bezel for thermometer, Spirit II '18
3 67063 Logo plate, SS w/black filling, Spirit II
4 67091 Lid assembly, Spirit II S-210, SS
4 66061 Lid bumpers (qty 2) Shop Now$11.99
5 67026 Warming rack, Spirit II 2 burner
6 67022 Set of grates, porcelain-enameled cast iron, Spirit II 2 burner
7 67045 Set of Flavorizer bars, porcelain enameled, Spirit II 2 burner Shop Now$52.49
8 67278 Crossover tube, Spirit II 2 burner
9 67160 Hardware for burners/cookbox rails, Spirit II
9 67024 LP burner tube kit, Spirit II 2 burner
10 67137 Wire/Electrode assembly, Spirit II, 2 burner
11 66678 Hardware, manifold
11 67160 Hardware for burners/cookbox rails, Spirit II
11 67264 Hardware kit for cookbox, Spirit II
11 67011 Cookbox assembly, Spirit II 2 burner
11 67262 Cookbox with holes, 2 burner series, Spirit II
12 67032 LP manifold assembly, Spirit II 2 burner
12 66678 Hardware, manifold
13 66220 Igniter switch (button)
14 67136 Ignition button wires, Spirit II 2 burner
15 67159 Hardware kit for control panel/frame panels, Spirit II
15 67007 Control panel, SS, Spirit II 2 burner
16 67028 Control knob kit, Spirit II 2 burner
17 67517 LHS pivot table, Spirit II '19
18 67525 LHS hinge kit for pivot table, Spirit II '19
19 67037 LHS upper panel, Spirit II
19 67159 Hardware kit for control panel/frame panels, Spirit II
20 66368 Igniter wire clip set
20 67159 Hardware kit for control panel/frame panels, Spirit II
20 67097 Front cross piece, Spirit II 2 burner
21 67159 Hardware kit for control panel/frame panels, Spirit II
21 67039 LHS lower panel, Spirit II
22 67064 Front/rear foot kit, Spirit II
23 67048 Lower front connector, Spirit II 2 burner
23 67159 Hardware kit for control panel/frame panels, Spirit II
24 67052 Ignition module, Spirit II
24 67135 Igniter kit, Spirit II 2 burner
25 67040 RHS lower panel, Spirit II
25 67159 Hardware kit for control panel/frame panels, Spirit II
26 67042 Bracket for rear wheel
26 67159 Hardware kit for control panel/frame panels, Spirit II
27 67041 Bracket for front wheel
27 67159 Hardware kit for control panel/frame panels, Spirit II
28 67021 Hardware for lid/cookbox, Spirit II
29 67060 Heat deflector, SS, Spirit II
30 67061 Grease tray rail kit, Spirit II
30 67160 Hardware for burners/cookbox rails, Spirit II
31 6415 Aluminum drip pans - small (10 pack) Shop Now$10.49
32 67036 Corrugated gas line, Spirit II
33 67047 Catch pan, Spirit II and Pulse
34 69832 Rear cross piece
34 67159 Hardware kit for control panel/frame panels, Spirit II
35 67159 Hardware kit for control panel/frame panels, Spirit II
35 67038 RHS upper panel, Spirit II
36 69846 Hardware for fixed table
36 67009 RHS fixed table, Spirit II
37 66344 iGrill cover
38 67049 Lower rear connector, Spirit II 2 burner
38 67514 Lower rear connector, Spirit II 2 burner (made after 8/30/19)
38 67159 Hardware kit for control panel/frame panels, Spirit II
39 67159 Hardware kit for control panel/frame panels, Spirit II
39 67056 Slat kit, Spirit II 2 burner (made prior to 8/31/19)
39 67516 Slat kit, Spirit II 2 burner (made after 8/30/19)
40 66232 Tank scale assembly
40 67159 Hardware kit for control panel/frame panels, Spirit II
41 67157 LP/NG Bulkhead assembly, Spirit II
41 67159 Hardware kit for control panel/frame panels, Spirit II
42 67069 QCC1 Hose and Regulator, 21" Shop Now$47.99
43 67158 Tank glide buttons, Spirit II
44 67059 Wheel insert kit
45 67058 Wheel w/insert
45 66682 Hardware for wheels
46 67043 Axle w/hardware, Spirit II
46 66682 Hardware for wheels
47 66345 Match stick holder
410 41056401 Literature kit, Spirit II 210/310 LP
410 41056447 Literature kit, Spirit II 210-310 LP
470 66368 Igniter wire clip set
470 66682 Hardware for wheels
470 67158 Tank glide buttons, Spirit II
470 67160 Hardware for burners/cookbox rails, Spirit II
470 68440 Hardware bag B, slat/control panel assembly
470 68442 Hardware bag E, table assembly
470 68560 Hardware bag A, frame assembly
470 66678 Hardware, manifold
470 67021 Hardware for lid/cookbox, Spirit II
470 67159 Hardware kit for control panel/frame panels, Spirit II
470 67264 Hardware kit for cookbox, Spirit II
470 68441 Hardware bag D, wheel/igniter module
470 68554 Hardware kit, Spirit II 2 burner
470 69846 Hardware for fixed table
510 6415 Aluminum drip pans - small (10 pack) Shop Now$10.49
510 7138 Premium Grill Cover, Spirit II 200 Shop Now$78.49
510 7516 Weber Handle Light, 2015-2019
510 7659 Rotisserie kit, Spirit II 200/300, US/MX/CA Shop Now$134.49
510 7137 Cover for 20 lb. propane tank Shop Now$14.49
510 7204 Weber iGrill 3 Shop Now$99.99
510 7658 Griddle, porcelain enamel cast iron, Spirit II 200/300
