A
|
55027
|

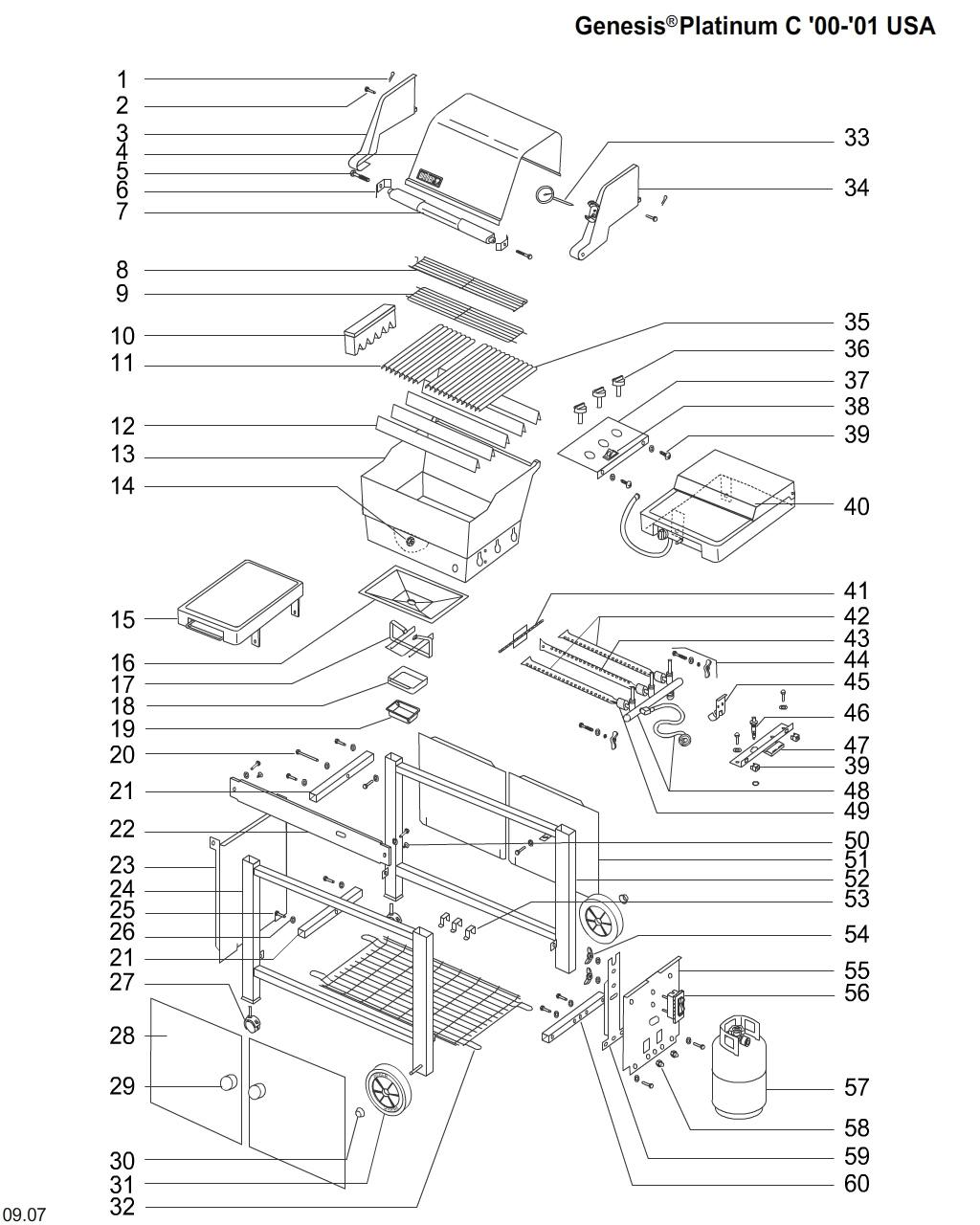

Owners manual. Genesis Platinum-C liquid propane models. USA version.
|
|
|
1
|
88206
|
Hardware for lid assembly
|
|
|
2
|
88206
|
Hardware for lid assembly
|
|
|
3A
|
78970
|
Self-threading nut
|
|
|
4
|
60542
|
Lid assembly, Genesis B, mica black, SS handle
|
|
|
4A
|
90503
|
Weber logo and fasteners for Genesis Platinum
|
|
|
5
|
4086955
|
Hexhead bolt 1/4-20 x 1-1/2 inch.
|
|
|
8
|
80623
|
Warm-up basket, Genesis Gold/Plat, '10
|
Shop Now$43.99
|
|
9
|
80633
|
Warming rack, Silver/Gold/Plat B/C/Spirit 300 series
|
Shop Now$43.99
|
|
10
|
62473
|
Smoker body and cover assembly for Platinum model grills
|
|
|
11
|
9861
|
SS cooking grates, Genesis 4-5500/Platinum B-C
|
|
|
11A
|
9861
|
SS cooking grates, Genesis 4-5500/Platinum B-C
|
|
|
13A
|
97783
|
Bottom tray rails w/hardware
|
|
|
13
|
90372
|
Cookbox (with rails) for Genesis Gold and Platinum grills.
|
|
|
14
|
1309
|
Hex nut 1/4 x 20 inch Keps nut
|
|
|
15H
|
87414
|
Hex nut 5/16-18 inch, zinc
|
|
|
15F
|
40877450
|
Guide Screw for burner tube mounting rails (guide screw)
|
|
|
15G
|
87415
|
Flat washer 5/16 inch, SAE
|
|
|
17
|
99253
|
Catch pan holder (packaged)
|
Shop Now$22.99
|
|
18
|
93305
|
Aluminum catch pan kit
|
Shop Now$13.99
|
|
19
|
6415
|
Aluminum drip pans - small (10 pack)
|
Shop Now$10.99
|
|
20
|
4086974
|
Hexhead bolt 1/4-20 x 2 inch. Black.
|
|
|
21
|
97231
|
Frame connector for Platinum II grills. Painted.
|
|
|
23
|
97756
|
Left-hand panel for Platinum grills. 1996 model year. Painted.
|
|
|
25
|
4086958
|
Hexhead screw (bolt) 1/4-20 x 1/2 inch. Black.
|
|
|
26
|
87403
|
1/4" Flat nylon washer, black
|
|
|
28B
|
97409
|
Door lock rod for Platinum II grills
|
|
|
28C
|
97469
|
5/16-inch spacer for Platinum and Summit series grill doors
|
|
|
29
|
97446
|
Door knob (external) for Platinum and Summit grills. Black.
|
|
|
30
|
987101
|
Replacement hubcaps (pack of 3)
|
|
|
31
|
63050
|
Wheel, 8" diameter
|
|
|
33
|
62538
|
Thermometer, dual-purpose.
|
Shop Now$9.99
|
|
34A
|
78970
|
Self-threading nut
|
|
|
35A
|
9861
|
SS cooking grates, Genesis 4-5500/Platinum B-C
|
|
|
38
|
92510
|
Rocker switch. Grey. (1996-present).
|
|
|
39
|
668
|
Control panel plugs with screws. 1/4-inch.
|
|
|
41A
|
20428
|
Burner tube kit, Genesis 1-5500, Platinum, Genesis Gold 2000-2001, Genesis Platinum
|
Shop Now$77.99
|
|
42A
|
20428
|
Burner tube kit, Genesis 1-5500, Platinum, Genesis Gold 2000-2001, Genesis Platinum
|
Shop Now$77.99
|
|
43A
|
20428
|
Burner tube kit, Genesis 1-5500, Platinum, Genesis Gold 2000-2001, Genesis Platinum
|
Shop Now$77.99
|
|
44
|
97786
|
Manifold hardware for Genesis, Spirit, and Platinum Gas Grills.
|
|
|
45
|
4089590
|
Manifold support bracket for Genesis Gold and Genesis Platinum series gas grills
|
|
|
46B
|
40826414
|
Igniter installation nut.
|
|
|
46E
|
70643
|
Ignition chamber assembly, 02
|
|
|
46
|
900
|
Igniter kit for Genesis, Spirit and Platinum model year 2000 grills.
|
Shop Now$18.99
|
|
46A
|
48826420
|
Igniter switch (includes push button)
|
|
|
48
|
65570
|
QCC1 Hose & Regulator LP, 21"
|
Shop Now$35.99
|
|
48A
|
65941
|
QCC1 hose and regulator, Gold, Platinum, Silver
|
Shop Now$45.99
|
|
48
|
90375
|
Manifold for liquid propane Genesis Gold-C and Platinum-C grills. USA version.
|
|
|
50
|
62196
|
Black plastic button to attach side panel.
|
|
|
53
|
99835
|
Tool holder (qty. 1)
|
|
|
54
|
87901
|
Wing nut 1/4-20 inch. Black.
|
|
|
56
|
99243
|
Tank scale
|
|
|
58
|
99838
|
Tank glide button
|
|
|
410
|
50783
|
Instruction sheet. Fuel scale assembly.
|
|
|
410
|
55355
|
Instruction sheet for burner tube replacement, `02
|
|
|
410
|
55027
|
Owners manual. Genesis Platinum-C liquid propane models. USA version.
|
|
|
410
|
63335
|
Instruction sheet. Quick disconnect hose and regulator replacement.
|
|
|
410
|
39906
|
Instruction sheet for ignition chamber.
|
|
|
410
|
55354
|
Instruction Sheet QCC1 Hose Replacement
|
|
|
470
|
63201
|
Hardware for lid assembly for Genesis Gold/Platinum grills
|
|
|
470
|
97785
|
Hardware for lid handle for Silver B-C,Genesis, Spirit, and Platinum Gas Grills.
|
|
|
470
|
80425
|
Hardware for tank scale/panel
|
|
|
470
|
97786
|
Manifold hardware for Genesis, Spirit, and Platinum Gas Grills.
|
|
|
470
|
668
|
Control panel plugs with screws. 1/4-inch.
|
|
|
470
|
97783
|
Bottom tray rails w/hardware
|
|
|
480
|
20428
|
Burner tube kit, Genesis 1-5500, Platinum, Genesis Gold 2000-2001, Genesis Platinum
|
Shop Now$77.99
|
|
480
|
900
|
Igniter kit for Genesis, Spirit and Platinum model year 2000 grills.
|
Shop Now$18.99
|
|
485
|
87969
|
Hose guard. 72 inches long.
|
|
|
485
|
42140
|
Quick disconnect for natural gas hose, 3/8" (connector only)
|
|
|
485
|
872103
|
10-foot natural gas hose
|
|
|
485
|
63203
|
Hose guard. 36 inches long.
|
|
|
485
|
4552615
|
S/B COUPLING NYLON QD W/SEALENT GP 25
|
|
|
490
|
9861
|
SS cooking grates, Genesis 4-5500/Platinum B-C
|
|
|
490
|
1174100
|
Porcelain enameled cooking grate, Genesis Jr. & also used with smoker attachment (Qty 1)
|
|
|
490
|
7638
|
Porcelain enameled cast iron cooking grates, (Qty 2)
|
|
|
490
|
9866
|
Porcelain enameled cooking grates, Genesis 4-5000 series (Qty 2)
|
|
|
490
|
7639
|
Stainless steel rod cooking grates, 7mm, (Qty 2)
|
Shop Now$135.99
|
|
490
|
65906
|
Porcelain enameled steel cooking grates, (Qty 2)
|
Shop Now$56.99
|
|
510
|
7659
|
Rotisserie kit, Spirit II 200/300, US/MX/CA
|
Shop Now$134.49
|
|
510
|
80623
|
Warm-up basket, Genesis Gold/Plat, '10
|
Shop Now$43.99
|
|
517
|
97341
|
Acorn nut for side burner of Platinum II/Summit Gas Grills.
|
|
|
518
|
97383
|
Hinge rod for side burner of Platinum/Summit Gas Grills.
|
|
|
519
|
97476
|
Spacer for side burner cover. 3/16 inch.
|
|
|
522
|
98210
|
Burner cap for Platinum II/Summit Gas Grill side burner.
|
|
|
524
|
97190
|
Burner assembly for side burner
|
|
|
527
|
98213
|
Burner base for Platinum II/Summit Gas Grill side burner.
|
|
|
527
|
97613
|
Screw, stainless steel, 10-32 x 3/8 inch. For side burner.
|
|
|
533
|
48826420
|
Igniter switch (includes push button)
|
|
|
533
|
97352
|
Igniter wire, black, 18 Platinum side burner.
|
|
|
533
|
40826414
|
Igniter installation nut.
|
|
|
537
|
40877450
|
Guide Screw for burner tube mounting rails (guide screw)
|
|
