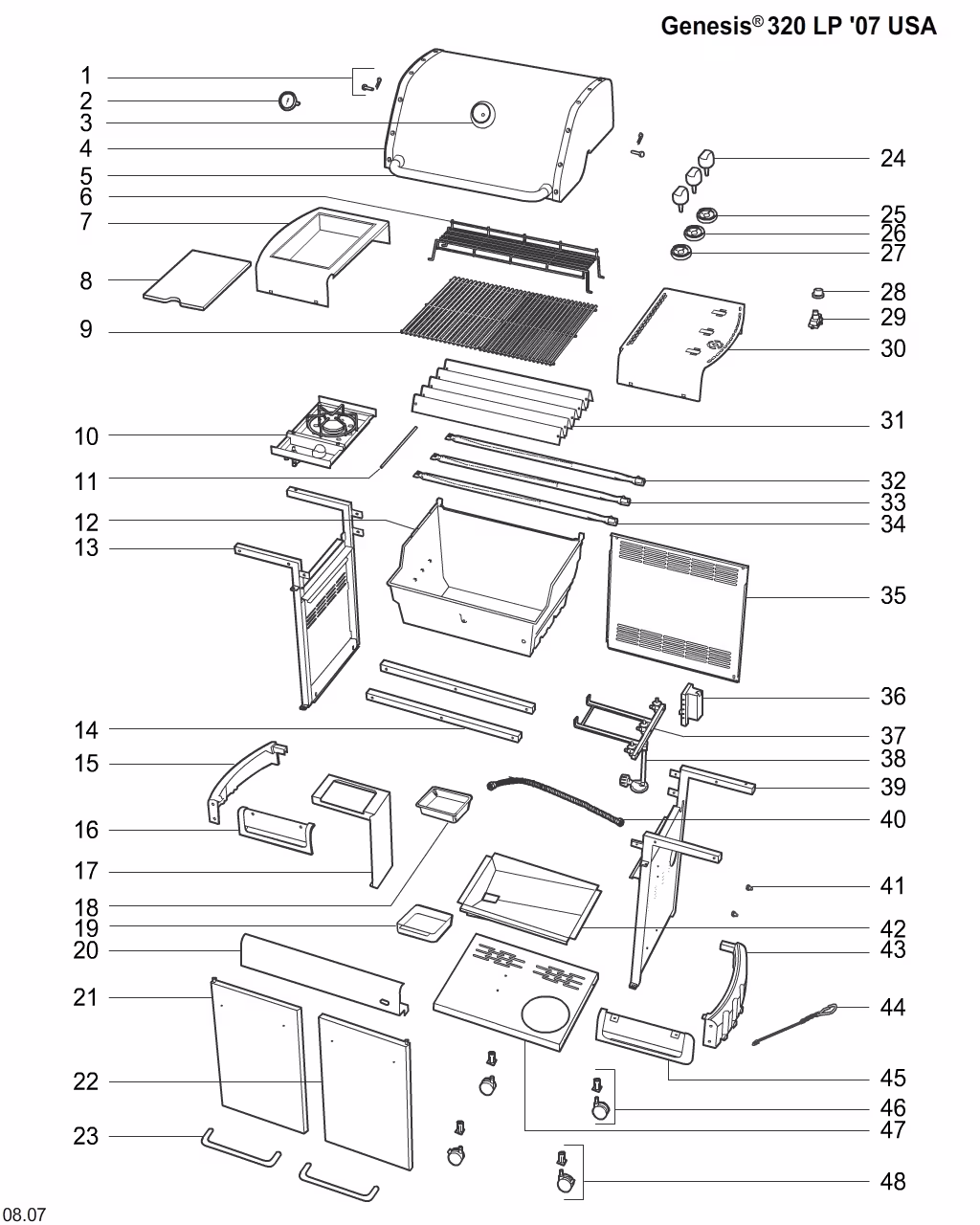

  • Schematic Image 3751001
  • Genesis E-320 LP Blk (2008) (USA)
  • 3751001

Additional Parts

Seq Part # Description Available Online
A 55980 LP Assembly guide, E/S 300 series
W 81629 Hardware kit, Genesis E/S 320
A 89555 Operating guide, Genesis LP
Y 88226 Bezel positioning tool, Genesis '07
B 89554 Literature kit, Genesis LP
1 88206 Hardware for lid assembly
2 67088 Thermometer, '18 Shop Now$19.99
2 60393 Thermometer w/o tab
3 67717 Bezel for Genesis/Summit, '07
4 68219 Lid assembly, Genesis 330 '11, black
4 68220 Lid assembly, Genesis 330 '11, copper
4 66513 Logo plate, SS Shop Now$14.99
4 68223 Lid assembly, Genesis 330 '11, green
5 65908 Hardware pack for handle
5 67718 Handle w/hardware, Genesis E/S 300 series
6 65054 Warming rack, SS, Genesis 300 (2011-2016) Shop Now$43.99
8 66463 Side burner lid w/hardware, Summit '17
8 67764 Hinge rod and clip for side burner lid, Genesis '07
9 65937 Porcelain enameled cast iron grates, Genesis 300 series (qty 2) Shop Now$135.99
10 65506 Trivet for side burner, SS
10 81252 Rubber lid bumper for side burner (Qty 1)
10 30125801 Control knob, side burner, grey
10 67765 Hardware for side burner table, Genesis
10 91173 Side burner ring
10 67775 LP side burner assembly, Genesis '07
10 91174 Ignition assembly for side burner Shop Now$35.99
11 67722 Burner tube kit, Genesis E/S300 series Shop Now$72.99
11 81335 Crossover tube
12 67726 Igniter kit, Genesis E/S 300 series Shop Now$36.99
12 67727 Hardware for cookbox, Genesis E/S300 series
12 67728 Cookbox, Genesis E/S300 series
13 70332 Adjustable door hinge
14 62777 Hardware for connectors, Genesis '11
14 67732 Frame connector with hardware
15 67734 LHS trim with hardware
15 67760 Hardware kit for trim pieces
16 67760 Hardware kit for trim pieces
16 67736 Left front trim with hardware
17 67812 Tank blocker, Genesis (short)
17 88063 Hardware for tank blocker
18 6415 Aluminum drip pans - small (10 pack) Shop Now$10.49
19 93305 Aluminum catch pan kit Shop Now$13.99
20 81803 Small hardware pack
20 67845 Front panel, Genesis '08, SS
21 67857 Door kit, Genesis '08, blue
21 91357 Door magnet
21 61374 Lighting instructions label for Genesis
21 67858 Door kit, Genesis '08, copper
21 67856 Door kit, Genesis '08, black
21 67859 Door kit, Genesis '08, green
22 67858 Door kit, Genesis '08, copper
22 67856 Door kit, Genesis '08, black
22 67859 Door kit, Genesis '08, green
22 67857 Door kit, Genesis '08, blue
22 91357 Door magnet
23 88082 Door handle w/hardware '07-'08 Shop Now$33.99
24 81168 Set of control knobs for Genesis 300 series Shop Now$15.99
25 82215 Bezel for rear control knob, Genesis '09
25 88208 Hardware for bezels/control panel
25 67749 Bezel for rear control knob with hardware
26 82217 Bezel for center control knob, Genesis '09
26 88208 Hardware for bezels/control panel
26 67750 Bezel for center control knob with hardware
27 82219 Bezel for front control knob, Genesis '09
27 88208 Hardware for bezels/control panel
27 67751 Bezel for front control knob with hardware
28 81316 Button for ignition module, gray (snap-fit style)
29 67726 Igniter kit, Genesis E/S 300 series Shop Now$36.99
29 81315 Ignition module, Genesis
30 82213 Control panel, SS, Genesis '09
31 65944 Set of Flavorizer bars, porcelain enamel, Genesis 300 series (side mount) Shop Now$65.99
32 67722 Burner tube kit, Genesis E/S300 series Shop Now$72.99
32 88217 Hardware for burner tubes, Genesis '09
33 67722 Burner tube kit, Genesis E/S300 series Shop Now$72.99
33 88217 Hardware for burner tubes, Genesis '09
34 67722 Burner tube kit, Genesis E/S300 series Shop Now$72.99
34 88217 Hardware for burner tubes, Genesis '09
35 67755 Rear panel with hardware
35 62777 Hardware for connectors, Genesis '11
36 81803 Small hardware pack
36 88214 Tank scale, Genesis '07
37 67701 LP manifold assembly for E/S 320
37 88068 Manifold hardware, Genesis '08
38 99281 Hose and regulator, QCC1, 42" Shop Now$36.99
38 81611 Hose clip w/tag, Genesis/Summit '07
39 67730 Right frame w/casters
39 70332 Adjustable door hinge
41 88065 Glide buttons and hardware
43 67733 RHS trim with hardware
43 67760 Hardware kit for trim pieces
44 81544 Match holder
45 67735 Right front trim with hardware
45 67760 Hardware kit for trim pieces
46 70359 Caster w/o lock, Spirit ('09-'12), Genesis/Summit ('07-'11) qty 1 Shop Now$28.99
47 67756 Bottom panel for LP model, with hardware
47 67762 Hardware kit for bottom panel
48 70360 Locking caster, Spirit ('09-'12), Genesis ('07-'11) Summit ('07-'11) qty 1 Shop Now$28.99
410 61374 Lighting instructions label for Genesis
470 63203 Hose guard. 36 inches long.
470 67762 Hardware kit for bottom panel
470 81803 Small hardware pack
470 88206 Hardware for lid assembly
470 88226 Bezel positioning tool, Genesis '07
470 67727 Hardware for cookbox, Genesis E/S300 series
470 67765 Hardware for side burner table, Genesis
470 88063 Hardware for tank blocker
470 88208 Hardware for bezels/control panel
470 62777 Hardware for connectors, Genesis '11
470 67760 Hardware kit for trim pieces
470 81629 Hardware kit, Genesis E/S 320
470 88068 Manifold hardware, Genesis '08
470 88210 Hardware for burner tubes, Genesis/Summit '07
480 67722 Burner tube kit, Genesis E/S300 series Shop Now$72.99
480 67726 Igniter kit, Genesis E/S 300 series Shop Now$36.99
490 7524 Porcelain enameled cast iron grates, Genesis 300 series (qty 2) Shop Now$135.99
490 82184 Grates for Genesis 2013, SS, rod-style Shop Now$184.99
495 7540 Set of stainless steel flavorizer bars, Genesis 300 series Shop Now$156.99
495 7539 Set of porcelain enameled flavorizer bars, Genesis 300 series Shop Now$65.99
510 7516 Weber Handle Light, 2015-2019
510 7615 Weber Elevations Tiered Cooking System Grill Rack and Skewer Set
510 7618 Weber Elevations Tiered Cooking System 4-Piece Skewer Set
510 8836 Weber Original Gourmet BBQ System Pizza Stone Shop Now$59.49
510 7130 Premium grill cover, Genesis II/LX 300, Genesis E/S 300
510 7578 Weber Style Premium Cast-Iron Plancha Genesis 300 Series
510 7616 Weber Elevations Tiered Cooking System Basket with Frame
510 7652 Rotisserie, Genesis II/LX 200/300 series
510 8838 Weber Original Gourmet BBQ System Poultry Roaster Shop Now$72.99
510 7421 Weber Original Gourmet BBQ System Griddle Shop Now$59.49
510 7587 Gourmet BBQ System Cooking Grate, Genesis 300 series
510 7617 Weber Elevations Tiered Cooking System Expansion Rack
510 8834 Weber Original Gourmet BBQ System Sear Grate Shop Now$59.49
510 8841 Weber Original Gourmet BBQ System Ebelskiver - discontinued
