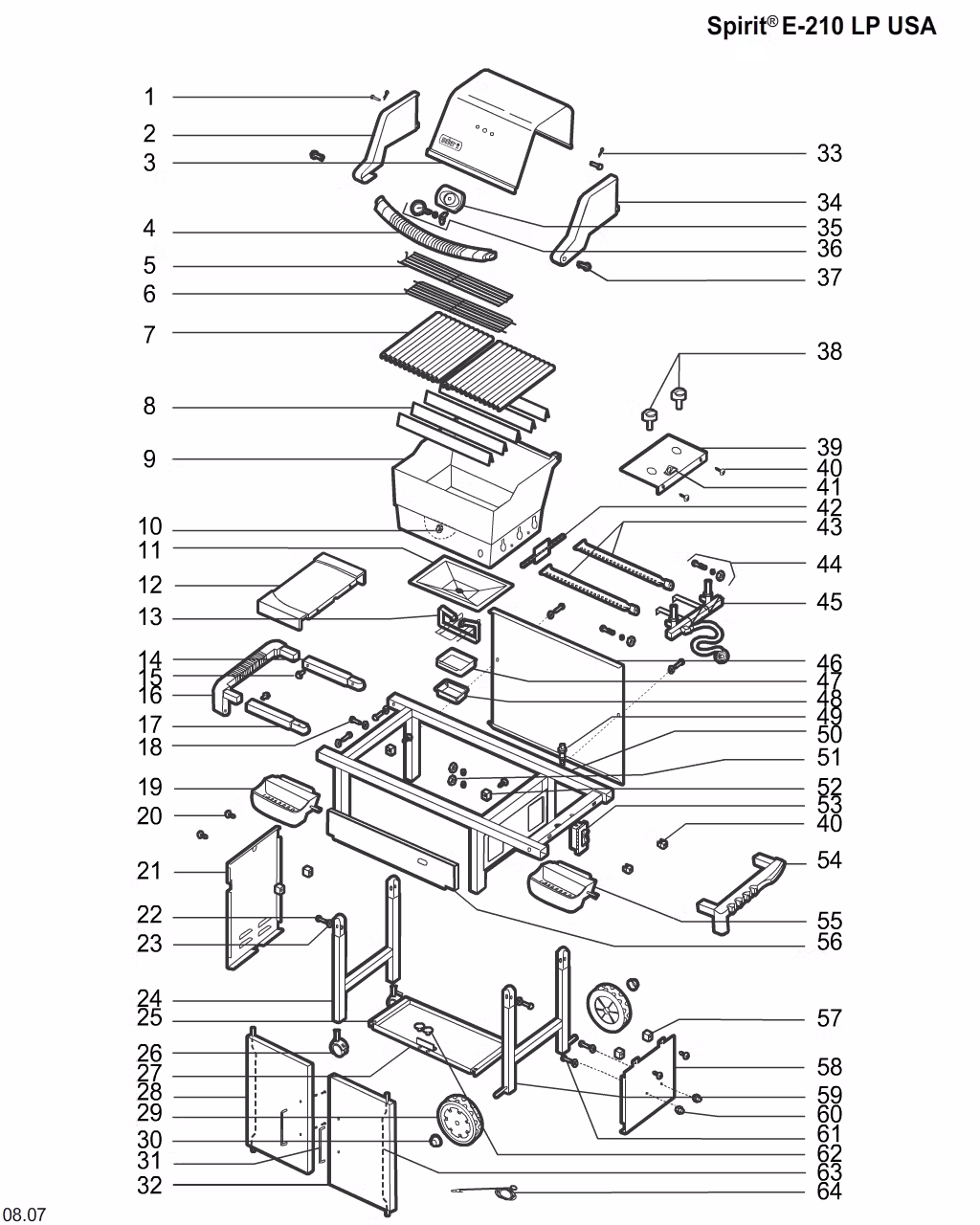

  • Schematic Image 3711001
  • Spirit E-210 LP Blk (USA)
  • 3711001

Additional Parts

Seq Part # Description Available Online
B 89525 Operating guide, Spirit LP
A 89523 Assembly guide for Spirit ES 210/310 LP
W 87006 Hardware pack w/hubcaps, 2 burner models
A 89524 Operating guide, Spirit LP
1 99236 Hardware for shroud
3 91520 Lid assembly, Spirit 200, black
3 51406 Logo and fasteners, `03
4 99244 Handle for E210, gray
5 63073 Warm-up swing basket, Silver A '10 Shop Now$41.99
6 80640 Warming rack, Silver A, Spirit 500 Shop Now$38.99
7 65904 Set of porcelain enameled steel grates Shop Now$76.99
8 65943 Set of porcelain enameled flavorizer bars, Spirit 500, Genesis Silver A, Spirit 200 ('07-12) Shop Now$65.99
9 88202 Grease tray rails w/hardware
9 91423 Cookbox, Genesis Silver A
10 80527 Mounting hardware for cookbox
11 99251 Grease tray, 210
12 78409 Work table, 210
13 99253 Catch pan holder (packaged) Shop Now$22.99
14 99238 LR/RF rail, qty 1
15 196 Hardware for trim pieces
16 78407 LHS trim, 210
17 99239 LF/RR rail, qty. 1
18 80527 Mounting hardware for cookbox
19 60345 Condiment bin for Genesis Silver B/C, `04
20 10311 Hardware kit for front panel assembly
21 99254 LHS panel, 210
22 99237 Hardware for frame assembly
23 99237 Hardware for frame assembly
24 60380 Caster frame assembly, Genesis Silver A, '05
25 99240 Door plugs and bushings
26 99241 Caster w/insert Shop Now$8.99
27 60425 Bottom Accessory Panel Genesis Silver A 2005
28 41811 Magnet for doors
28 77703 Lighting instruction label
30 987101 Replacement hubcaps (pack of 3)
31 43849 Door handles w/screws, stainless steel
32 41811 Magnet for doors
33 99236 Hardware for shroud
35 60470 Bezel replacement for Genesis Silver A/B/C, '05
36 60540 Thermometer, Q/Spirit/Genesis/Charcoal Shop Now$15.99
37 99236 Hardware for shroud
38 99242 Control knobs (qty. 3), light grey
39 60573 Control panel, 210
40 80802 Hardware for control panel, .250
41 99260 Rocker switch, gray
42 10404 Burner tube set, Genesis Silver A/Spirit 210 Shop Now$45.99
43 10404 Burner tube set, Genesis Silver A/Spirit 210 Shop Now$45.99
44 80804 Hardware for manifold, Genesis, Nafta
45 99264 QCC1 hose and regulator, LP Shop Now$38.99
45 60432 Manifold assembly for Genesis Silver A LP, '05 USA
45 69891 QCC1 hose and regulator, 17" Shop Now$43.99
46 99256 Rear panel, 210
47 93305 Aluminum catch pan kit Shop Now$13.99
48 6415 Aluminum drip pans - small (10 pack) Shop Now$10.49
49 902 Igniter kit, 2002 snap-in style Shop Now$18.99
50 78403 Top frame, Spirit 210
51 82718 Hardware for tank scale
52 10311 Hardware kit for front panel assembly
53 99243 Tank scale
54 60341 Right trim for Genesis Silver A, `04, boxed
55 78405 Condiment bin w/hinge rod, 210
56 60558 Front panel replacement assembly, Genesis Silver A, '05
56 99240 Door plugs and bushings
56 10311 Hardware kit for front panel assembly
57 10311 Hardware kit for front panel assembly
58 99255 RHS panel, 210
59 60383 Wheel frame assembly, Genesis Silver A, '05
60 80313 Tank glide buttons
61 80313 Tank glide buttons
62 99240 Door plugs and bushings
63 99261 Hinge rod
410 77703 Lighting instruction label
470 63203 Hose guard. 36 inches long.
470 80804 Hardware for manifold, Genesis, Nafta
470 87035 Discontinued - Rotisserie hardware '10
470 99240 Door plugs and bushings
470 196 Hardware for trim pieces
470 80527 Mounting hardware for cookbox
470 82718 Hardware for tank scale
470 99236 Hardware for shroud
470 987101 Replacement hubcaps (pack of 3)
470 10311 Hardware kit for front panel assembly
470 80802 Hardware for control panel, .250
470 87006 Hardware pack w/hubcaps, 2 burner models
470 99237 Hardware for frame assembly
480 10404 Burner tube set, Genesis Silver A/Spirit 210 Shop Now$45.99
480 902 Igniter kit, 2002 snap-in style Shop Now$18.99
490 7522 Set of porcelain enameled cast iron grates for Genesis Silver A Shop Now$109.99
490 65905 Set of SS grates, Silver A, Spirit 500
495 7534 Set of porcelain enameled flavorizer bars, Spirit 500, Genesis Silver A, Spirit 200 ('07-'12) Shop Now$65.99
510 7516 Weber Handle Light, 2015-2019
510 7659 Rotisserie kit, Spirit II 200/300, US/MX/CA Shop Now$134.49
510 7130 Premium grill cover, Genesis II/LX 300, Genesis E/S 300
510 7614 Rotisserie Kit, Spirit 200/300 series
510 7139 Premium Grill Cover, Spirit II 300 Shop Now$89.49
