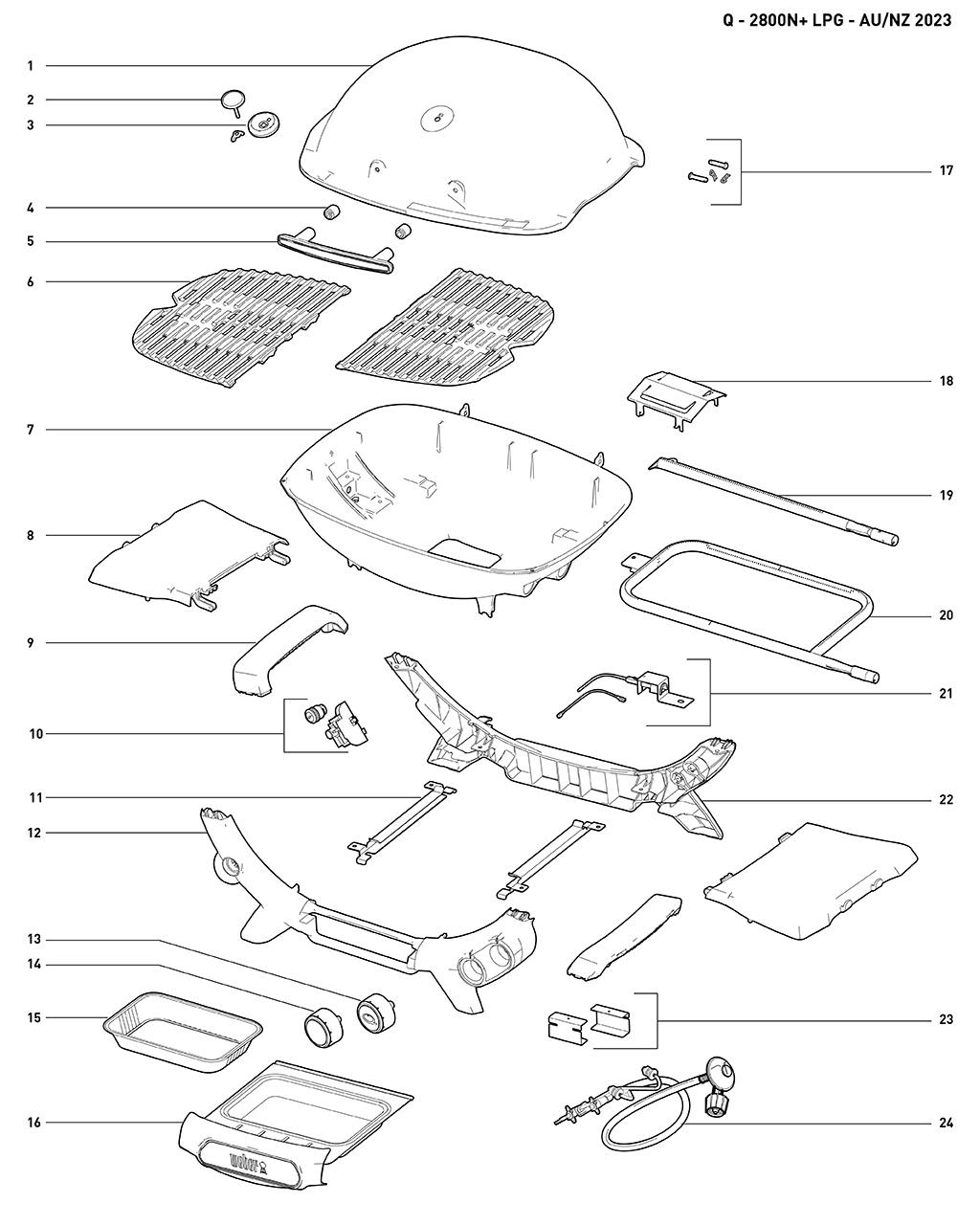

  • Schematic Image 28610024
  • Weber® Q™+ Premium (Q2800N+) Gas Barbecue (ULPG)
  • 28610024

Additional Parts

Seq Part # Description Available Online
1 66543 Hardware for lid
1 2400123 Lid Assembly, Q2800N+, flame red
1 2400071 LID Q2000N/2600N+ LT GRAY CGG 23 BB
1 2400125 Lid Assembly, Q2800N+, charcoal grey
1 2400121 Lid Assembly, Q2800N+, midnight black
2 2400186 KIT THERMOMETER EXP 2B CGG 23 BB
3 63027 Bezel for thermometer
4 64867 Lid handle spacers, Q 1000/2000/2800
5 2400093 Lid handle kit, Q2800N+
6 2400075 Cooking Grate, PECI, Set of 2
7 2400141 Cookbox, midnight black, Q2800N+
7 2400150 Cookbox, charcoal grey, Q2800N+
7 2400142 Cookbox, smoke grey, Q2800N+
7 2400082 Hardware, Burner tube
7 2400143 Cookbox, flame red, Q2800N+
8 2400076 Side Table, black
9 2400077 Carrying handle, Left/Right
10 2400140 Igniter Kit, Q2800N+
11 2400110 Grease tray rails, set of 2
12 2400184 Front Cradle, Q2800N+
12 2400144 Control knob, sear, Q2800N+
13 2400104 Control knob, main, Q2800N+
15 2400105 Heat Deflector
15 6415 Aluminum drip pans - small (10 pack) Shop Now$10.49
16 2400103 Catch pan kit, Q2800N+
17 66543 Hardware for lid
19 2400145 Inner, Burner tube
20 2400106 Outer, Burner tube
21 2400140 Igniter Kit, Q2800N+
22 2400107 Cradle Assembly, Rear, black
23 2400101 Rain Shield Assembly
24 2400146 MFLD ASSY MED 2B AU/NZ CGG 23 BB
