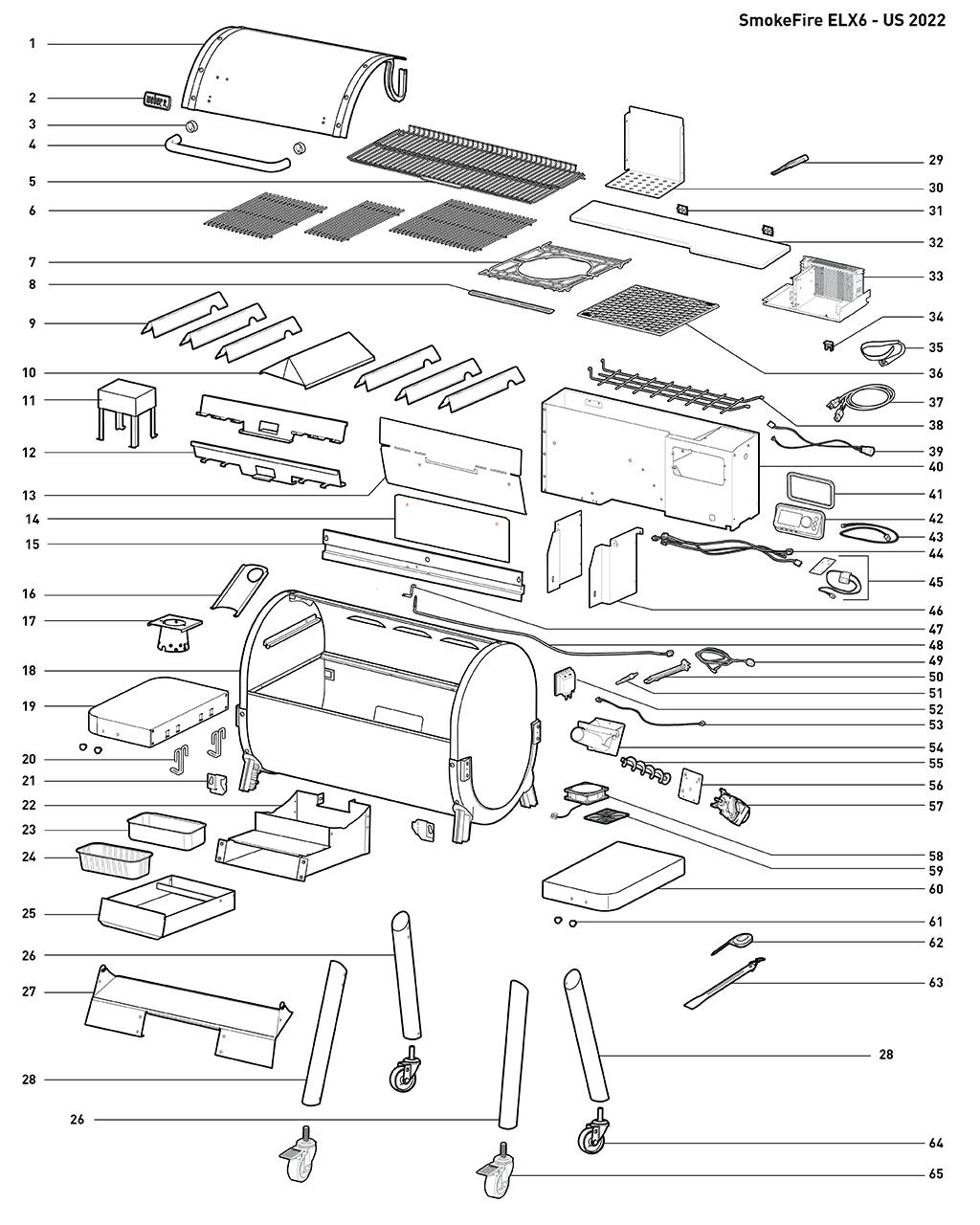

1
|
64733
|
Lid Assembly 36" Black EPX6
|
|
|
1
|
69259
|
Lid Hardware (nuts & washers)
|
|
|
2
|
64738
|
Logo Plate Black Fill EPX4/EPX6 w/hardware
|
|
|
3
|
64786
|
Handle Bezels for EPX4/6 w/hardware
|
|
|
4
|
64739
|
Lid Handle Assembly EXP6, black w/hardware
|
|
|
4
|
68974
|
Lid handle hardware, SmokeFire
|
|
|
5
|
2400063
|
Upper cooking grate, ELX-6
|
|
|
6
|
69239
|
Grate clips, SmokeFire
|
|
|
6
|
64776
|
Cooking Grates Set of 3, EPX6
|
|
|
7
|
64940
|
Weber Crafted Frame, Spirit/SF
|
|
|
8
|
64941
|
Weber Crafted Insert, PECI
|
|
|
9
|
69262
|
Flavorizer bar, set of 6, EX-6, SS
|
|
|
10
|
68947
|
Large Flavorizer Bar, EX-4/EX-6
|
Shop Now$40.99
|
|
11
|
68937
|
Diffuser weldment
|
|
|
12
|
68936
|
Flavorizer bar bracket (single)
|
|
|
13
|
64721
|
Cookbox Heat Shield EPX6
|
|
|
14
|
64770
|
Hopper Heat Shield
|
|
|
15
|
64735
|
Hopper Mount Panel 36" EPX6 w/hardware
|
|
|
16
|
64763
|
Welded Burn Pot/Grate w/Slide
|
|
|
16
|
68938
|
Pellet slide
|
|
|
17
|
64763
|
Welded Burn Pot/Grate w/Slide
|
|
|
17
|
64769
|
Welded Burn Pot/Grate w/o Slide
|
|
|
18
|
64750
|
Cookbox Assembly 36" Black EPX6
|
|
|
18
|
69259
|
Lid Hardware (nuts & washers)
|
|
|
18
|
64748
|
Hardware, Handle Plates EPX4/EPX6
|
|
|
18
|
69397
|
Felt strip pack (5 total)
|
|
|
19
|
68972
|
Side table/side handle reinforcement plate/bracket set
|
|
|
19
|
2400066
|
LHS table assembly, SmokeFire ELX
|
|
|
19
|
8650028
|
HDWE KIT SF 23
|
|
|
20
|
2400041
|
Grate hooks, LHS table, SmokeFire ELX
|
|
|
21
|
2400042
|
Grate hooks, front, SmokeFire ELX
|
|
|
22
|
68973
|
Hardware for legs/skirt (qty. 14)
|
|
|
22
|
68923
|
Enclosure for grease tray w/ hardware
|
|
|
23
|
70379
|
Catch pan kit
|
Shop Now$23.99
|
|
24
|
6498
|
Drip pan (qty 10) Large Grills
|
Shop Now$15.49
|
|
25
|
64762
|
Grease Tray
|
|
|
26
|
68919
|
Leg, right-front, left-rear w/ hardware
|
|
|
26
|
68973
|
Hardware for legs/skirt (qty. 14)
|
|
|
27
|
68973
|
Hardware for legs/skirt (qty. 14)
|
|
|
27
|
69390
|
Front Skirt 36" Black
|
|
|
28
|
68973
|
Hardware for legs/skirt (qty. 14)
|
|
|
28
|
68920
|
Leg, right-rear, left-front w/ hardware
|
|
|
29
|
64764
|
Pellet Release Hatch
|
|
|
30
|
64717
|
Hopper Access Panel
|
|
|
31
|
64724
|
Hinge Kit for Hopper w/hardware
|
|
|
32
|
64726
|
Hopper Lid 36" Black, STEALTH w/hardware
|
|
|
33
|
64780
|
Power Supply Assembly w/hardware, EPX6
|
|
|
33
|
64785
|
Fuse, STEALTH (5.0A 250V)
|
|
|
33
|
64743
|
Hardware, Power Supply Assembly
|
|
|
34
|
64746
|
Hardware, Grill Light Path Kit
|
|
|
35
|
69307
|
Cord wrap hook & loop, 14" x .75
|
|
|
36
|
2400064
|
Weber Crafted Dual Sided Sear Grate
|
|
|
37
|
69258
|
Power cord/plug
|
|
|
38
|
64761
|
Finger Guard Wire, w/hardware EPX6
|
|
|
39
|
64787
|
Light Switch w/cables
|
|
|
40
|
64757
|
Hopper Assembly 36", Black EPX6
|
|
|
40
|
64770
|
Hopper Heat Shield
|
|
|
40
|
64744
|
Hardware, Hopper Mount
|
|
|
40
|
68975
|
Wire clip (qty 3)
|
|
|
41
|
64778
|
Controller Bezel, Black
|
|
|
42
|
69609
|
Connect Controller Assembly
|
|
|
42
|
2400065
|
Control knob, backlight, SmokeFire ELX
|
|
|
43
|
68943
|
Wiring harness, Connect module
|
|
|
44
|
68945
|
Cable for motor
|
|
|
44
|
64713
|
Cable for Glow Plug Bracket EPX4/EPX6
|
|
|
44
|
68975
|
Wire clip (qty 3)
|
|
|
44
|
68944
|
Cable for fan
|
|
|
45
|
64715
|
Sensor Bracket/Low Fuel Assembly
|
|
|
45
|
64714
|
Shield Fuel Sensor
|
|
|
46
|
64716
|
Hopper Engine Mount Panel
|
|
|
47
|
68954
|
Thermocouple bracket
|
|
|
48
|
68942
|
Thermocouple
|
|
|
49
|
64719
|
Glow Plug Bracket EPX4/EPX6 '22
|
|
|
50
|
64713
|
Cable for Glow Plug Bracket EPX4/EPX6
|
|
|
51
|
64718
|
Glow Plug, '22
|
|
|
52
|
64789
|
NIGHTVISION, grill light bulb kit, 120V
|
|
|
53
|
64783
|
NIGHTVISION, grill light assembly w/cable
|
|
|
54
|
64766
|
Auger/Auger Chute
|
|
|
54
|
64768
|
Hardware, Auger/Motor Assembly
|
|
|
55
|
64768
|
Hardware, Auger/Motor Assembly
|
|
|
55
|
68982
|
Auger
|
|
|
55
|
64723
|
Motor/Auger Assembly STEALTH
|
|
|
56
|
64722
|
Plate for Motor/Auger mount
|
|
|
57
|
64723
|
Motor/Auger Assembly STEALTH
|
|
|
58
|
68952
|
Fan Assembly
|
|
|
59
|
68953
|
Fan guard
|
|
|
60
|
2400183
|
Table RHS Black EPX4/6 w/hardware
|
|
|
61
|
69263
|
Tool hook (qty 2), chrome
|
|
|
62
|
68970
|
Meat probe w/red sleeve, SmokeFire
|
Shop Now$17.99
|
|
63
|
69257
|
Grease scraping tool
|
|
|
64
|
64737
|
Caster, Rear EXP4/6 (qty. 1)
|
|
|
65
|
64736
|
Caster, Locking EXP4/6 (qty. 1)
|
|
|
410
|
40223500
|
LIT KIT SMOKE FIRE ELX4/ELX6 US/CA 23
|
|
|
470
|
64744
|
Hardware, Hopper Mount
|
|
|
470
|
64768
|
Hardware, Auger/Motor Assembly
|
|
|
470
|
68974
|
Lid handle hardware, SmokeFire
|
|
|
470
|
64724
|
Hinge Kit for Hopper w/hardware
|
|
|
470
|
64746
|
Hardware, Grill Light Path Kit
|
|
|
470
|
68972
|
Side table/side handle reinforcement plate/bracket set
|
|
|
470
|
68975
|
Wire clip (qty 3)
|
|
|
470
|
64743
|
Hardware, Power Supply Assembly
|
|
|
470
|
64748
|
Hardware, Handle Plates EPX4/EPX6
|
|
|
470
|
68973
|
Hardware for legs/skirt (qty. 14)
|
|
|
470
|
69259
|
Lid Hardware (nuts & washers)
|
|
