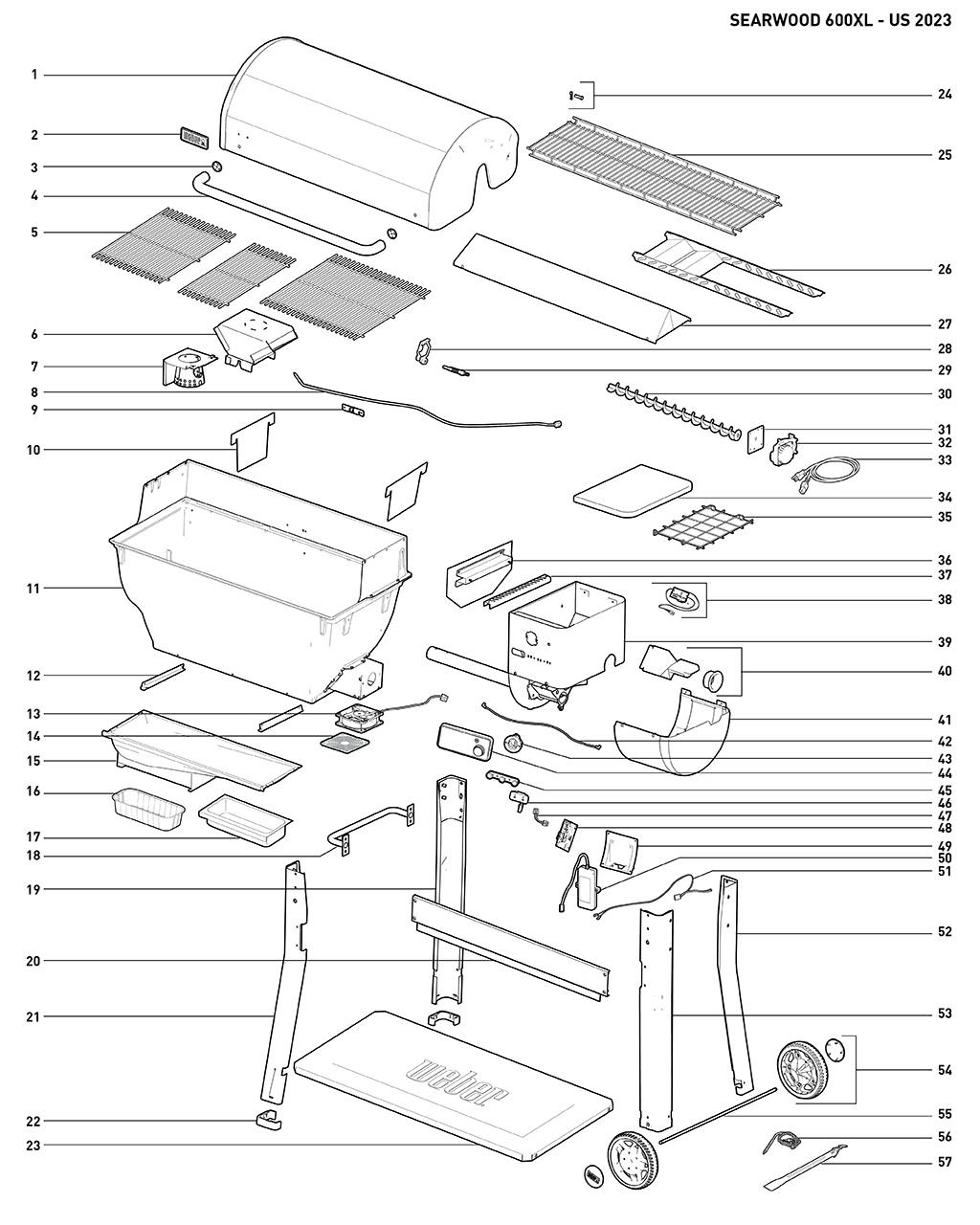

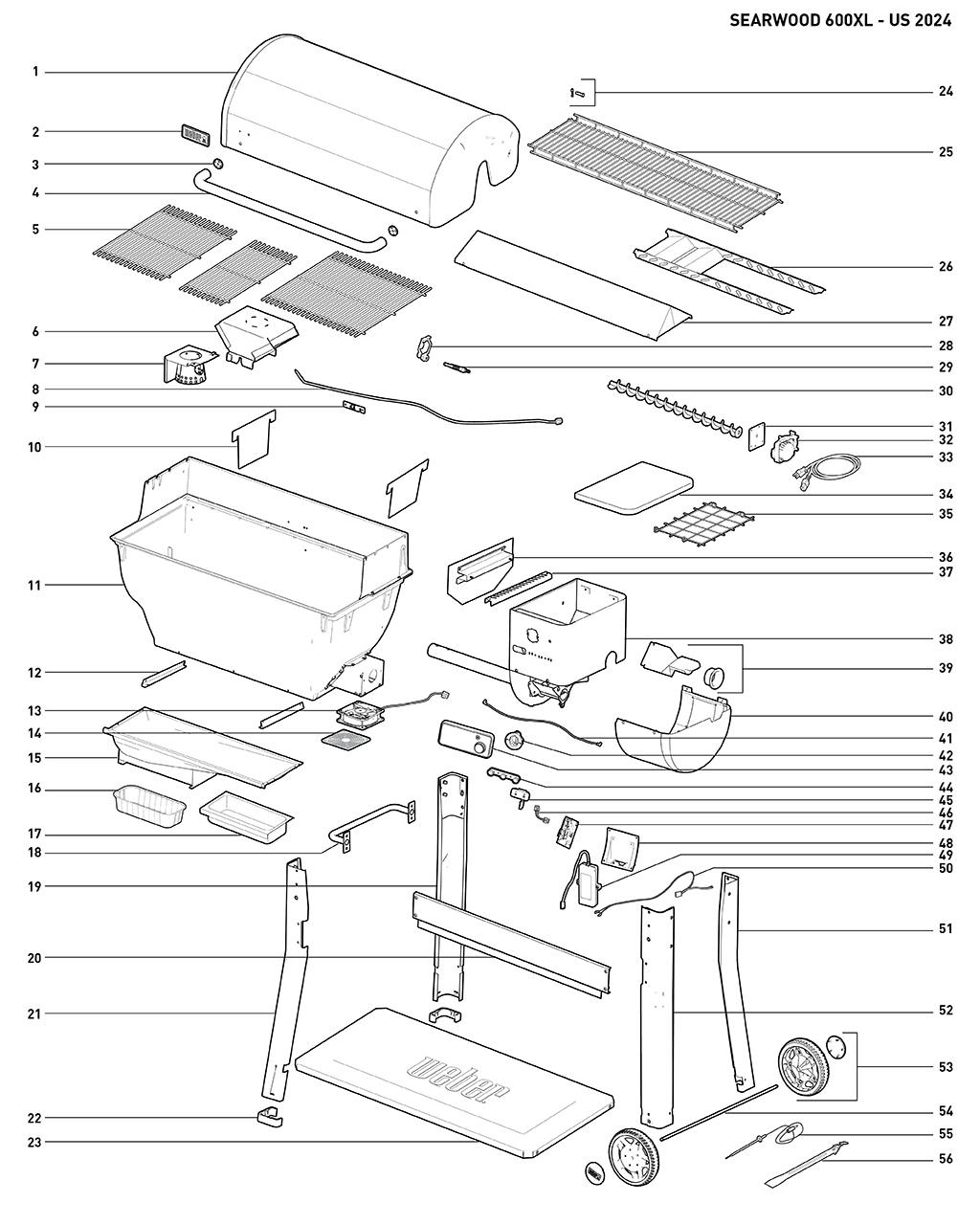

1
|
2400397
|
Lid, Searwood 36" black
|
|
|
2
|
2400321
|
Logo Plate
|
|
|
3
|
2400420
|
Hardware, lid handle bezel
|
|
|
3
|
2400322
|
Handle spacer bezel, black (qty. 2)
|
|
|
4
|
2400324
|
Lid handle, 36"
|
|
|
5
|
2400350
|
Cooking grates, set of 3, 36"
|
|
|
6
|
2400415
|
Diffuser weldment
|
|
|
7
|
2400410
|
Firepot w/grate weldment
|
|
|
8
|
2400414
|
Wire clip, thermocouple (set of 4)
|
|
|
8
|
2400411
|
Thermocouple assembly
|
|
|
9
|
2400412
|
Thermocouple mounting bracket
|
|
|
10
|
2400421
|
Side liner, cookbox, (qty 2)
|
|
|
11
|
2400401
|
Cookbox assembly, Searwood 36"
|
|
|
12
|
2400327
|
Tray rails (set of 2)
|
|
|
13
|
2400413
|
Fan assembly
|
|
|
14
|
68953
|
Fan guard
|
|
|
15
|
2400423
|
Grease tray assembly 36"
|
|
|
16
|
6498
|
Drip pan (qty 10) Large Grills
|
Shop Now$15.49
|
|
17
|
2400328
|
Catch pan kit
|
|
|
18
|
2400372
|
Side handle
|
|
|
19
|
2400341
|
Leg, black, rear left
|
|
|
20
|
2400417
|
Front cross brace, 36"
|
|
|
21
|
2400342
|
Leg, black, front left
|
|
|
22
|
2400345
|
Leg feet kit, black
|
|
|
23
|
2400419
|
Bottom shelf assembly, 36" black
|
|
|
24
|
66438
|
Lid hardware, Genesis/Searwood
|
|
|
25
|
2400371
|
Cooking grate, upper, 36"
|
|
|
26
|
2400340
|
Heat deflector, 36"
|
|
|
27
|
2400326
|
Flavorizer bar, SS, 36"
|
|
|
28
|
2400346
|
Mounting assembly glow plug SS
|
|
|
29
|
2400348
|
Glow plug, threaded, Searwood
|
|
|
30
|
2400374
|
Auger weldment, 36"
|
|
|
31
|
2400375
|
Auger/Motor mounting plate, black
|
|
|
32
|
2400424
|
Auger Motor
|
|
|
33
|
69258
|
Power cord/plug
|
|
|
34
|
2400405
|
Lid, hopper black
|
|
|
35
|
2400404
|
Hopper safety guard
|
|
|
36
|
2400426
|
Hopper mounting panel
|
|
|
37
|
2400425
|
Heat shield, hopper
|
|
|
38
|
2400376
|
Fuel gauge assembly, 36"
|
|
|
39
|
2400403
|
Hopper assembly w/fuel gauge
|
|
|
40
|
2400427
|
Pellet release handle
|
|
|
41
|
2400428
|
Maintenance door, easy access
|
|
|
42
|
2400429
|
Cable, connect mount red
|
|
|
43
|
2400406
|
Weber Connect Mount
|
|
|
44
|
2400407
|
Weber Connect Digital LCD Controller
|
|
|
45
|
69479
|
Tool Hook Black
|
|
|
46
|
2400377
|
Probe hub assembly
|
|
|
47
|
2400444
|
Probe hub cable
|
|
|
48
|
2400408
|
Circuit board
|
|
|
49
|
2400440
|
Power supply mount
|
|
|
50
|
2400409
|
Power supply
|
|
|
51
|
2400441
|
Cable, motor/glow plug
|
|
|
52
|
2400343
|
Leg, Rear right
|
|
|
53
|
2400344
|
Leg, Front right
|
|
|
54
|
2400347
|
Wheel assembly (qty 1)
|
|
|
54
|
2400442
|
Wheel insert, black (qty 1)
|
|
|
55
|
2400349
|
Axle
|
|
|
56
|
3400324
|
Meat probe, Searwood/Summit '24
|
Shop Now$19.99
|
|
57
|
69257
|
Grease scraping tool
|
|
|
470
|
2400840
|
Control knob
|
|
|
470
|
2400870
|
Hardware, Burn pot, Searwood
|
|
|
470
|
2400873
|
Hardware, Leg extension, Searwood
|
|
|
470
|
2400876
|
Hardware, Motor/auger, Searwood
|
|
|
470
|
2400858
|
Hardware Kit, Searwood
|
|
|
470
|
2400871
|
Hardware, Legs, Searwood
|
|
|
470
|
2400874
|
Hardware, Hopper mount, Searwood
|
|
|
470
|
2400859
|
Hardware, Cookbox, Searwood
|
|
|
470
|
2400872
|
Hardware, Glow plug, Searwood
|
|
|
470
|
2400875
|
Hardware, Service Weldment, Searwood
|
|
