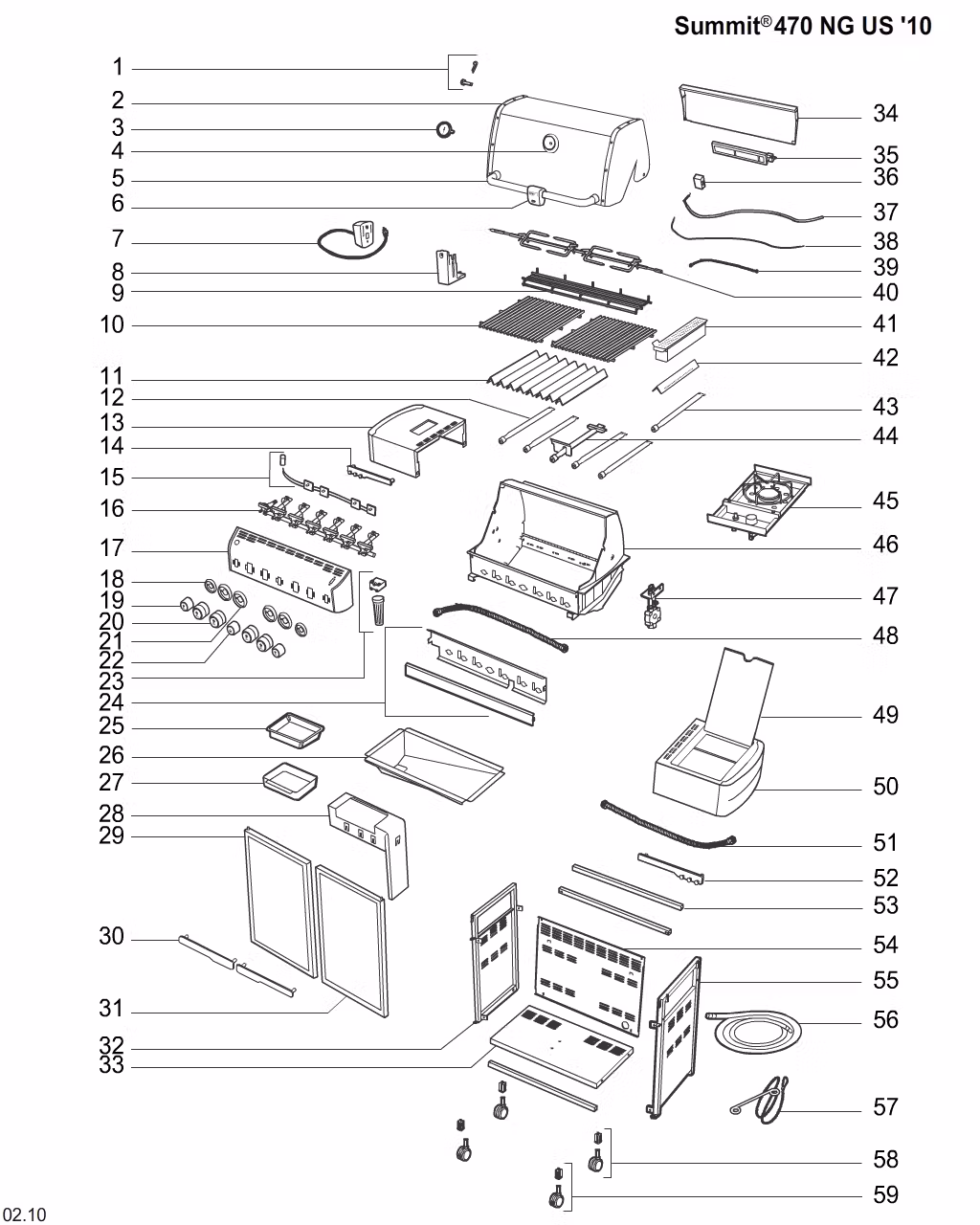

  • Schematic Image 97270001
  • Summit S-470 NG SS
  • 97270001

Additional Parts

Seq Part # Description View Online
A 48576 Literature Kit, Summit 470 NG '16
A 56700 Assembly guide, Summit E/S-470 '11, US/E
W 84269 Table reinforcement plate kit
A 56210 Literature kit, Summit 470 NG '11, US/ES/F
B 56210 Literature kit, Summit 470 NG '11, US/ES/F
A 48920 Literature Kit, Summit 470 NG US/CA/MX '15
A 56826 Addendum for Mexico (Required for Mexico only)
W 84280 Hardware kit, Summit '11
1 70302 Hardware kit, Summit Lid
2 66379 Lid assembly, SS, Summit 400 series
2 66513 Logo plate, SS
3 67088 Thermometer, '18
4 67717 Bezel for Genesis/Summit, '07
5 70370 Handle with bezels/spacers/hardware, Summit 400 series View Now$60.99
5 65908 Hardware pack for handle
6 69273 Handle light
7 65579 Rotisserie motor, Type B, '15
8 70888 Plastic latch w/spring
8 66339 Tuck away rotisserie bracket
9 70191 Warming rack, Summit 400 '07 View Now$55.99
10 70372 Rod-style grate, SS, 11.8", qty. 1
10 67550 Set of stainless steel grates, Summit 440/450/460/470 View Now$338.99
11 70375 Flavorizer bars, SS, set of 4
11 67668 Stainless steel flavorizer bars, Summit 440/450/460/470 View Now$103.99
12 67557 Burner tube kit, Summit 460/470
12 70306 Single burner tube for main burner, Summit '07, qty 1
13 66321 LHS table assembly, SS '17
13 62773 Hardware for table assembly, Genesis 300 series, '11
14 81803 Small hardware pack
14 70312 LHS tool holder with hardware
15 70881 Wiring harness, Summit 470
15 70189 Momentary light switch, Summit '11
16 79166 NG manifold assembly, Summit E/S 460/470
16 88067 Manifold hardware, Summit '07
17 88231 Hardware kit for control panel, Summit '11
17 66271 Control panel, SS, Summit 460/470 '17
18 88208 Hardware for bezels/control panel
18 70883 Small bezel w/fasteners, Summit 470/670
19 70378 Control knob for IR burner/smoker burner, qty 1 View Now$17.99
20 91538 Lighted control knob assembly, qty 2 (2012 and later models)
20 67691 Control Knob Kit, Summit 460/470
21 70318 Bezel for main burners with hardware
21 88208 Hardware for bezels/control panel
22 70868 Sear knob assembly View Now$22.99
23 70879 Battery pack head
23 70880 Battery pack housing
24 88210 Hardware for burner tubes, Genesis/Summit '07
24 70873 Heat shield/water baffle, Summit 470
25 6498 Drip pan (qty 10) Large Grills View Now$20.99
26 70115 Grease tray, Summit 400 '11, SS
27 70379 Catch pan kit
28 88063 Hardware for tank blocker
28 70321 Tank blocker (catch pan holder), Summit 400 series
29 62779 Hardware for control panel, Genesis '11
29 91357 Door magnet
29 66278 LHS door assembly, SS, S-470
30 70327 Door handles with hardware View Now$68.99
31 91357 Door magnet
31 66327 RHS door assembly, SS, Summit S-400 '17
31 62779 Hardware for control panel, Genesis '11
32 79494 LHS frame assembly, Summit E/S 400-600 series, '12
32 70332 Adjustable door hinge
33 67762 Hardware kit for bottom panel
33 91317 Bottom panel, Summit Platinum 4 burner NG, '10
34 70392 Hardware for IR cover
34 43291 IR Burner black plastic tubing/wire wrap, Summit '14
34 85649 Rain cover for IR burner, Summit 460 built-in
35 70389 IR burner with bracket
35 70385 NG Orifice for IR burner, with nut
36 70338 Cover box for IR burner
37 6021713 NUT M8 X 1 HEX BRASS
37 70390 Thermocouple with electrode and wire
38 6021713 NUT M8 X 1 HEX BRASS
38 70390 Thermocouple with electrode and wire
39 70398 Gas line for IR burner, 64"
40 84116 Rotisserie hardware for tuckaway rotisserie, w/forks, '10
40 80622 Rotisserie shaft, Summit E/S 400 series, '12
40 70380 Screws for rotisserie forks, qty 4
41 70381 Smoker box assembly
42 70187 Chipper grate, Summit '07 smoker
43 70307 Smoker burner tube, Summit '07
44 70865 Sear burner tube kit, Summit 470
45 70397 NG side burner assembly, Summit '07
45 91174 Ignition assembly for side burner View Now$41.99
45 67765 Hardware for side burner table, Genesis
45 91173 Side burner ring
45 30125801 Control knob, side burner, grey
45 81252 Rubber lid bumper for side burner (Qty 1)
45 91175 Side burner cap, Summit '03
46 60600 Hardware for cookbox, Summit '10
46 64850 Flavorizer bar brackets, Summit 400 '14
46 64845 Cookbox, Summit 460/470 '14
46 70339 Silicone bumpers, quantity 4
47 88212 Hardware for bulkhead, Summit '07
47 70345 NG bulkhead with regulator
48 70283 Corrugated gas line, main
49 67764 Hinge rod and clip for side burner lid, Genesis '07
49 66463 Side burner lid w/hardware, Summit '17
50 66322 Side burner table assembly, SS '17
50 62773 Hardware for table assembly, Genesis 300 series, '11
51 70371 Transfer line for side burner
52 81803 Small hardware pack
52 70349 RHS tool holder with hardware
53 62776 Hardware for frame/rear panel, Genesis '11
53 70350 Frame connector and hardware, Summit 4 burner
54 70355 Rear panel, NG Summit 400 series
55 70332 Adjustable door hinge
55 79498 RHS frame assembly, Summit E/S 400-600 NG, export
56 66349 Natural gas hose, 1/2" View Now$175.99
56 42144 1/2" Quick disconnect fitting
57 81544 Match holder
58 79499 Caster w/out lock, Genesis (2012-2016), Summit (2012-2019) View Now$34.99
59 79500 Locking caster, Genesis (2012-2016), Summit (2012-2019) View Now$34.99
410 48920 Literature Kit, Summit 470 NG US/CA/MX '15
410 56826 Addendum for Mexico (Required for Mexico only)
410 48453 Assembly Guide, Summit 470 LP, export '16
410 56700 Assembly guide, Summit E/S-470 '11, US/E
410 56210 Literature kit, Summit 470 NG '11, US/ES/F
470 88067 Manifold hardware, Summit '07
470 88211 Retainer clip for thermocouple/wires
470 88063 Hardware for tank blocker
470 88210 Hardware for burner tubes, Genesis/Summit '07
470 88231 Hardware kit for control panel, Summit '11
470 62776 Hardware for frame/rear panel, Genesis '11
470 67764 Hinge rod and clip for side burner lid, Genesis '07
470 81803 Small hardware pack
470 84280 Hardware kit, Summit '11
470 88208 Hardware for bezels/control panel
470 88212 Hardware for bulkhead, Summit '07
470 62773 Hardware for table assembly, Genesis 300 series, '11
470 67762 Hardware kit for bottom panel
470 70392 Hardware for IR cover
470 60600 Hardware for cookbox, Summit '10
470 62779 Hardware for control panel, Genesis '11
470 67765 Hardware for side burner table, Genesis
470 84116 Rotisserie hardware for tuckaway rotisserie, w/forks, '10
480 70379 Catch pan kit
480 91174 Ignition assembly for side burner View Now$41.99
480 84269 Table reinforcement plate kit
510 6498 Drip pan (qty 10) Large Grills View Now$20.99
510 7421 Weber Original Gourmet BBQ System Griddle View Now$71.99
510 7615 Weber Elevations Tiered Cooking System Grill Rack and Skewer Set
510 7618 Weber Elevations Tiered Cooking System 4-Piece Skewer Set
510 8838 Weber Original Gourmet BBQ System Poultry Roaster View Now$98.99
510 7404 Griddle for Summit E/S 420/670 View Now$126.99
510 7585 Gourmet BBQ System Cooking Grate, Summit series
510 7617 Weber Elevations Tiered Cooking System Expansion Rack
510 8836 Weber Original Gourmet BBQ System Pizza Stone View Now$72.99
510 7108 Cover, Summit 400 series View Now$164.99
510 7577 Weber Style Premium Cast-Iron Plancha Summit 400/600 Series
510 7616 Weber Elevations Tiered Cooking System Basket with Frame
510 8834 Weber Original Gourmet BBQ System Sear Grate View Now$72.99
510 8841 Weber Original Gourmet BBQ System Ebelskiver - discontinued
