A
|
48925
|
Literature Kit, Summit 460 built-in LP, US/CA/MX '15
|
|
|
B
|
60600
|
Hardware for cookbox, Summit '10
|
|
|
B
|
70392
|
Hardware for IR cover
|
|
|
B
|
85636
|
Hardware (10-32 x .375 philips pan head screw, qty 4)
|
|
|
B
|
88067
|
Manifold hardware, Summit '07
|
|
|
B
|
88212
|
Hardware for bulkhead, Summit '07
|
|
|
A
|
56571
|
Literature kit, Summit 460 built-in LP, '11
|
|
|
B
|
62776
|
Hardware for frame/rear panel, Genesis '11
|
|
|
B
|
84116
|
Rotisserie hardware for tuckaway rotisserie, w/forks, '10
|
|
|
B
|
88063
|
Hardware for tank blocker
|
|
|
B
|
88208
|
Hardware for bezels/control panel
|
|
|
B
|
88231
|
Hardware kit for control panel, Summit '11
|
|
|
A
|
48589
|
Literature Kit, Summit 460 LP Built-in
|
|
|
B
|
42446
|
Hardware for LP Summit Built-in Kit
|
|
|
B
|
67762
|
Hardware kit for bottom panel
|
|
|
B
|
84272
|
Hardware for Summit built-in series, '11
|
|
|
B
|
88065
|
Glide buttons and hardware
|
|
|
B
|
88210
|
Hardware for burner tubes, Genesis/Summit '07
|
|
|

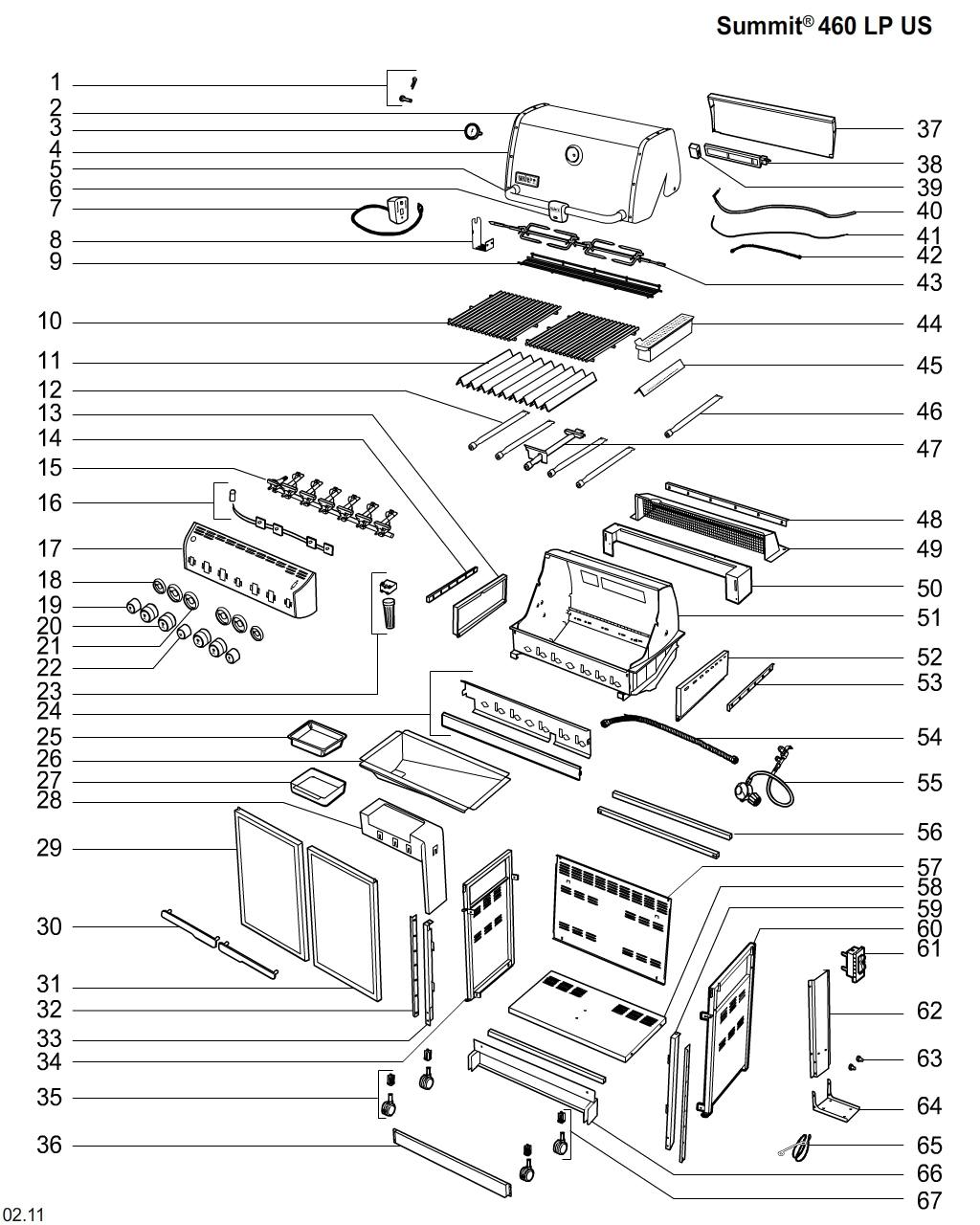

1
|
70302
|
Hardware kit, Summit Lid
|
|
|
2
|
66513
|
Logo plate, SS
|
|
|
2
|
66379
|
Lid assembly, SS, Summit 400 series
|
|
|
3
|
67088
|
Thermometer, '18
|
|
|
4
|
67717
|
Bezel for Genesis/Summit, '07
|
|
|
5
|
65908
|
Hardware pack for handle
|
|
|
5
|
70370
|
Handle with bezels/spacers/hardware, Summit 400 series
|
View Now$60.99
|
|
6
|
69273
|
Handle light
|
|
|
7
|
65579
|
Rotisserie motor, Type B, '15
|
|
|
8
|
70305
|
Bracket for rotisserie motor, with hardware
|
|
|
8
|
70888
|
Plastic latch w/spring
|
|
|
9
|
70191
|
Warming rack, Summit 400 '07
|
View Now$55.99
|
|
10
|
67550
|
Set of stainless steel grates, Summit 440/450/460/470
|
View Now$338.99
|
|
10
|
70372
|
Rod-style grate, SS, 11.8", qty. 1
|
|
|
11
|
67668
|
Stainless steel flavorizer bars, Summit 440/450/460/470
|
View Now$103.99
|
|
11
|
70375
|
Flavorizer bars, SS, set of 4
|
|
|
12
|
70306
|
Single burner tube for main burner, Summit '07, qty 1
|
|
|
12
|
67557
|
Burner tube kit, Summit 460/470
|
|
|
13
|
85598
|
Side top panel for LHS, Summit 460/660 built-in, '11
|
|
|
14
|
85619
|
Top trim for LHS, Summit 460/660 built-in series, '11
|
|
|
15
|
79165
|
LP manifold assembly, Summit E/S 460/470
|
|
|
15
|
88067
|
Manifold hardware, Summit '07
|
|
|
16
|
70881
|
Wiring harness, Summit 470
|
|
|
16
|
70189
|
Momentary light switch, Summit '11
|
|
|
17
|
66271
|
Control panel, SS, Summit 460/470 '17
|
|
|
17
|
88231
|
Hardware kit for control panel, Summit '11
|
|
|
18
|
70883
|
Small bezel w/fasteners, Summit 470/670
|
|
|
18
|
88208
|
Hardware for bezels/control panel
|
|
|
19
|
70378
|
Control knob for IR burner/smoker burner, qty 1
|
View Now$17.99
|
|
20
|
67691
|
Control Knob Kit, Summit 460/470
|
|
|
20
|
91538
|
Lighted control knob assembly, qty 2 (2012 and later models)
|
|
|
21
|
88208
|
Hardware for bezels/control panel
|
|
|
21
|
70318
|
Bezel for main burners with hardware
|
|
|
22
|
70868
|
Sear knob assembly
|
View Now$22.99
|
|
23
|
70880
|
Battery pack housing
|
|
|
23
|
70879
|
Battery pack head
|
|
|
24
|
70873
|
Heat shield/water baffle, Summit 470
|
|
|
24
|
88210
|
Hardware for burner tubes, Genesis/Summit '07
|
|
|
25
|
6498
|
Drip pan (qty 10) Large Grills
|
View Now$20.99
|
|
26
|
70115
|
Grease tray, Summit 400 '11, SS
|
|
|
27
|
70379
|
Catch pan kit
|
|
|
28
|
70323
|
Tank blocker, Summit 400 series, export
|
|
|
28
|
88063
|
Hardware for tank blocker
|
|
|
29
|
91357
|
Door magnet
|
|
|
29
|
66279
|
LHS door assembly, SS, S-460 '17
|
|
|
30
|
70327
|
Door handles with hardware
|
View Now$68.99
|
|
31
|
91357
|
Door magnet
|
|
|
31
|
66272
|
RHS door assembly, SS, S-460 '17
|
|
|
32
|
85618
|
Front trim, Summit 460/660 built-in series, '11
|
|
|
33
|
85636
|
Hardware (10-32 x .375 philips pan head screw, qty 4)
|
|
|
33
|
85596
|
Left front trim piece
|
|
|
34
|
70332
|
Adjustable door hinge
|
|
|
34
|
79494
|
LHS frame assembly, Summit E/S 400-600 series, '12
|
|
|
35
|
79500
|
Locking caster, Genesis (2012-2016), Summit (2012-2019)
|
View Now$34.99
|
|
36
|
85587
|
Front bottom panel, Summit 460 built-in, '11
|
|
|
37
|
85649
|
Rain cover for IR burner, Summit 460 built-in
|
|
|
37
|
70392
|
Hardware for IR cover
|
|
|
38
|
70384
|
LP Orifice for IR burner, with nut, 30mb
|
|
|
38
|
70389
|
IR burner with bracket
|
|
|
39
|
70338
|
Cover box for IR burner
|
|
|
40
|
70390
|
Thermocouple with electrode and wire
|
|
|
40
|
6021713
|
NUT M8 X 1 HEX BRASS
|
|
|
41
|
70390
|
Thermocouple with electrode and wire
|
|
|
41
|
6021713
|
NUT M8 X 1 HEX BRASS
|
|
|
42
|
70398
|
Gas line for IR burner, 64"
|
|
|
43
|
70380
|
Screws for rotisserie forks, qty 4
|
|
|
43
|
80622
|
Rotisserie shaft, Summit E/S 400 series, '12
|
|
|
43
|
84116
|
Rotisserie hardware for tuckaway rotisserie, w/forks, '10
|
|
|
44
|
70381
|
Smoker box assembly
|
|
|
45
|
70187
|
Chipper grate, Summit '07 smoker
|
|
|
46
|
70307
|
Smoker burner tube, Summit '07
|
|
|
47
|
70865
|
Sear burner tube kit, Summit 470
|
|
|
48
|
85653
|
Rear trim, Summit 4-460 built-in, '11 (filler strip)
|
|
|
49
|
85637
|
Rear vent housing, Summit 460 built-in
|
|
|
49
|
85636
|
Hardware (10-32 x .375 philips pan head screw, qty 4)
|
|
|
50
|
85593
|
Rear top panel, Summit 460 built-in, '11
|
|
|
50
|
85636
|
Hardware (10-32 x .375 philips pan head screw, qty 4)
|
|
|
51
|
60600
|
Hardware for cookbox, Summit '10
|
|
|
51
|
70339
|
Silicone bumpers, quantity 4
|
|
|
51
|
64845
|
Cookbox, Summit 460/470 '14
|
|
|
51
|
64850
|
Flavorizer bar brackets, Summit 400 '14
|
|
|
52
|
85599
|
Side top panel for RHS, Summit 460/660 built-in, '11
|
|
|
53
|
85620
|
Top trim for RHS, Summit 460/660 built-in series, '11
|
|
|
54
|
97840
|
Corrugated gas line for Summit built-in grill models.
|
|
|
55
|
60395
|
LP bulkhead assembly, Summit Built-in, USA
|
|
|
55
|
65572
|
QCC1 Hose & Regulator LP, 37"
|
|
|
56
|
62776
|
Hardware for frame/rear panel, Genesis '11
|
|
|
56
|
70350
|
Frame connector and hardware, Summit 4 burner
|
|
|
57
|
70352
|
Rear panel, LP Summit 400 series
|
|
|
57
|
67762
|
Hardware kit for bottom panel
|
|
|
58
|
67762
|
Hardware kit for bottom panel
|
|
|
58
|
91317
|
Bottom panel, Summit Platinum 4 burner NG, '10
|
|
|
59
|
85597
|
Right front trim piece
|
|
|
59
|
85636
|
Hardware (10-32 x .375 philips pan head screw, qty 4)
|
|
|
60
|
79498
|
RHS frame assembly, Summit E/S 400-600 NG, export
|
|
|
60
|
70332
|
Adjustable door hinge
|
|
|
61
|
99243
|
Tank scale
|
|
|
62
|
85656
|
Tank stand upright
|
|
|
63
|
88065
|
Glide buttons and hardware
|
|
|
64
|
85655
|
Tank stand base
|
|
|
65
|
81544
|
Match holder
|
|
|
66
|
62776
|
Hardware for frame/rear panel, Genesis '11
|
|
|
66
|
85589
|
Rear bottom panel, Summit 460 built-in, '11
|
|
|
67
|
79499
|
Caster w/out lock, Genesis (2012-2016), Summit (2012-2019)
|
View Now$34.99
|
|
410
|
48589
|
Literature Kit, Summit 460 LP Built-in
|
|
|
410
|
48925
|
Literature Kit, Summit 460 built-in LP, US/CA/MX '15
|
|
|
410
|
56571
|
Literature kit, Summit 460 built-in LP, '11
|
|
|
470
|
42446
|
Hardware for LP Summit Built-in Kit
|
|
|
470
|
62776
|
Hardware for frame/rear panel, Genesis '11
|
|
|
470
|
70392
|
Hardware for IR cover
|
|
|
470
|
85636
|
Hardware (10-32 x .375 philips pan head screw, qty 4)
|
|
|
470
|
88067
|
Manifold hardware, Summit '07
|
|
|
470
|
88211
|
Retainer clip for thermocouple/wires
|
|
|
470
|
60600
|
Hardware for cookbox, Summit '10
|
|
|
470
|
67762
|
Hardware kit for bottom panel
|
|
|
470
|
84116
|
Rotisserie hardware for tuckaway rotisserie, w/forks, '10
|
|
|
470
|
88063
|
Hardware for tank blocker
|
|
|
470
|
88208
|
Hardware for bezels/control panel
|
|
|
470
|
88212
|
Hardware for bulkhead, Summit '07
|
|
|
470
|
70380
|
Screws for rotisserie forks, qty 4
|
|
|
470
|
84272
|
Hardware for Summit built-in series, '11
|
|
|
470
|
88065
|
Glide buttons and hardware
|
|
|
470
|
88210
|
Hardware for burner tubes, Genesis/Summit '07
|
|
|
470
|
88231
|
Hardware kit for control panel, Summit '11
|
|
|
480
|
70379
|
Catch pan kit
|
|
|
510
|
7421
|
Weber Original Gourmet BBQ System Griddle
|
View Now$71.99
|
|
510
|
7615
|
Weber Elevations Tiered Cooking System Grill Rack and Skewer Set
|
|
|
510
|
7618
|
Weber Elevations Tiered Cooking System 4-Piece Skewer Set
|
|
|
510
|
8838
|
Weber Original Gourmet BBQ System Poultry Roaster
|
View Now$98.99
|
|
510
|
83003
|
Built in Summit Dual Side Burner LP
|
|
|
510
|
6498
|
Drip pan (qty 10) Large Grills
|
View Now$20.99
|
|
510
|
7577
|
Weber Style Premium Cast-Iron Plancha Summit 400/600 Series
|
|
|
510
|
7616
|
Weber Elevations Tiered Cooking System Basket with Frame
|
|
|
510
|
8834
|
Weber Original Gourmet BBQ System Sear Grate
|
View Now$72.99
|
|
510
|
8841
|
Weber Original Gourmet BBQ System Ebelskiver - discontinued
|
|
|
510
|
30174399
|
Cover for Summit 400 Built-in, '16
|
|
|
510
|
7404
|
Griddle for Summit E/S 420/670
|
View Now$126.99
|
|
510
|
7585
|
Gourmet BBQ System Cooking Grate, Summit series
|
|
|
510
|
7617
|
Weber Elevations Tiered Cooking System Expansion Rack
|
|
|
510
|
8836
|
Weber Original Gourmet BBQ System Pizza Stone
|
View Now$72.99
|
|
510
|
21321
|
LP side burner for Summit Platinum Built-in
|
|
