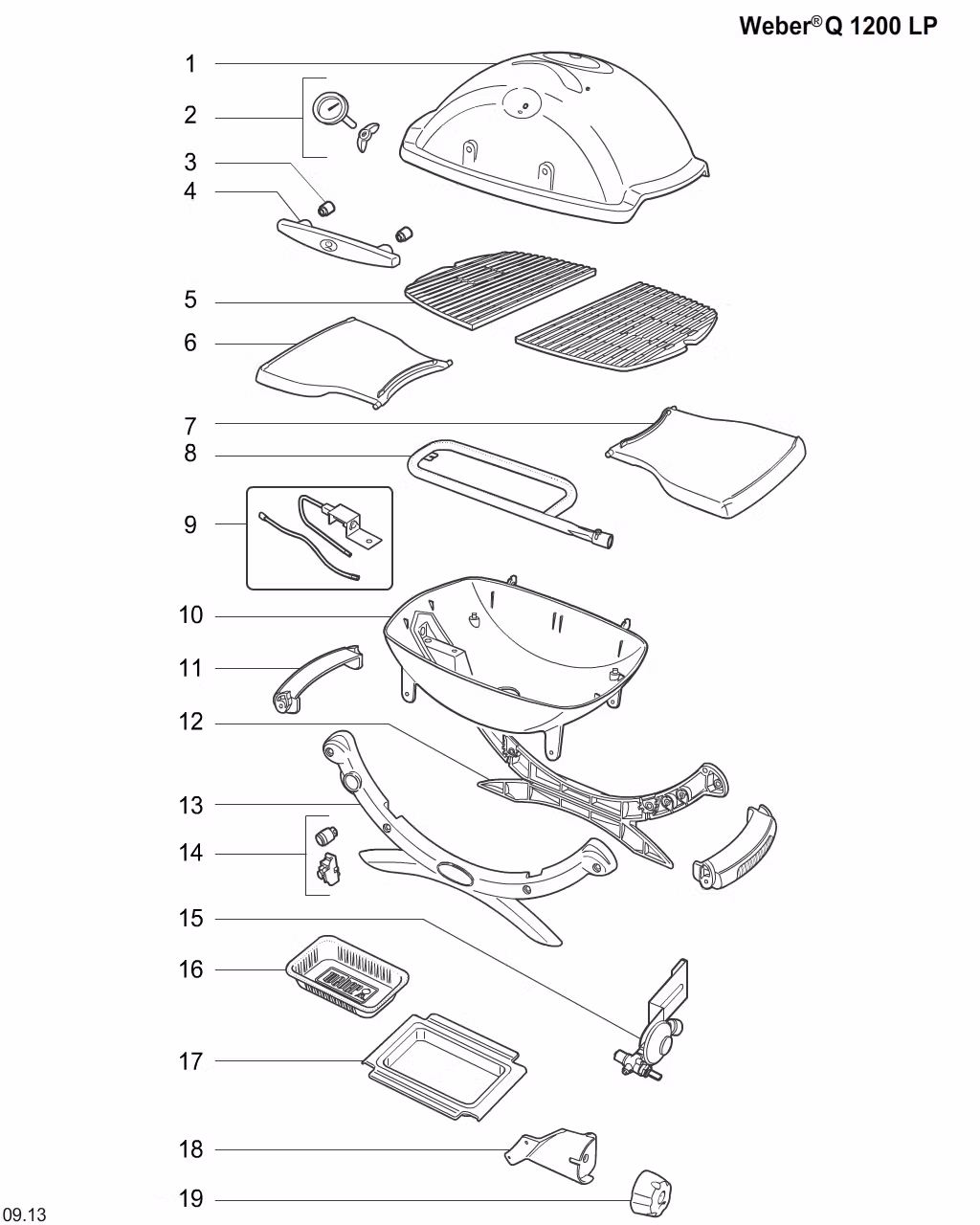

  • Schematic Image 51060001
  • Weber Q 1200 Titanium (2014) (US/CA/MX)
  • 51060001

Additional Parts

Seq Part # Description View Online
A 85381 Literature Kit, Q 1000/1200/2000/2200 US/CA/MX '14 - replaced by 48969
W 85364 Hardware kit, Q 1000/1200 '14
A 48969 Literature Kit, Q 1000/1200/2000/2200 US/CA/MX '15
W 80395 Hardware for burner replacement, Q 300
W 64863 Hardware kit, cookbox/frame, Q 1000 '14
W 88232 Hardware for retainer/(also for export tank holder), Q '10
1 60066 Lid assembly, Q 1200, titanium '14
1 65489 Lid assembly, Q 1200, green '15
1 65492 Lid assembly, Q 1200, purple '15
1 65488 Lid assembly, Q 1200, black '15
1 65491 Lid assembly, Q 1200, orange '15
1 80369 Hardware kit for lid
1 65065 Lid assembly, Q 1200, red '14
1 65490 Lid assembly, Q 1200, blue '15
1 65494 Lid assembly, Q 1200, fuschia '15
2 60070 Thermometer, Q '14
3 64867 Lid handle spacers, Q 1000/2000/2800
4 60059 Lid handle, Q 1000/1200/2000/2200 '14 View Now$22.99
5 65810 Porcelain enameled cooking grates w/clips (qty 2), Baby Q, Q 100/1000
6 60067 Table kit, Q 1200 '14
7 60067 Table kit, Q 1200 '14
8 69957 Burner tube w/hardware, Q 1000 '14 View Now$49.99
8 80395 Hardware for burner replacement, Q 300
9 64868 Igniter kit, Q 1200/2200, '14
10 60055 Cookbox, Q 1000, black '14
10 64863 Hardware kit, cookbox/frame, Q 1000 '14
11 60060 Side handle (set), Q 1000, black '14
12 41915 Rubber replacement tabs, non-skid
12 80362 Hardware kit for leg frame
12 60062 Rear leg frame, Q 1000, black '14
13 41915 Rubber replacement tabs, non-skid
13 80362 Hardware kit for leg frame
13 60063 Front leg frame, Q 1000, black '14
14 69927 Igniter module '14
14 40358001 Ignition module button, Weber Q
15 87504 Brass hex nut, M14 x 1
15 64866 Valve/regulator assembly w/brass nut View Now$87.99
16 6415 Aluminum drip pans - small (10 pack) View Now$13.99
17 80346 Catch pan, Q 100 series
18 60064 Control knob bracket, Q 1000, black '14
19 60065 Control knob, Q 1000, black '14 View Now$13.99
410 85381 Literature Kit, Q 1000/1200/2000/2200 US/CA/MX '14 - replaced by 48969
410 48969 Literature Kit, Q 1000/1200/2000/2200 US/CA/MX '15
470 64863 Hardware kit, cookbox/frame, Q 1000 '14
470 85364 Hardware kit, Q 1000/1200 '14
470 80395 Hardware for burner replacement, Q 300
470 80369 Hardware kit for lid
470 88232 Hardware for retainer/(also for export tank holder), Q '10
480 64868 Igniter kit, Q 1200/2200, '14
510 6501 Adapter hose - Portable Q's, Gas Go Anywhere, Performer LP models View Now$48.99
510 6558 Q 100/1000 Griddle, PECI View Now$79.99
510 7113 Cover for Weber Q 1000/2000 series w/portable cart View Now$60.99
510 6557 Weber Q Portable Cart
510 7110 Grill cover, Baby Q/100/1000 series View Now$34.99
510 6530 Weber Q Handle Light '16 - discontinued
510 6561 Weber Original Weber Q Roasting Shield Small - discontinued for North America
