TYPE 27 GAS BOTTLE

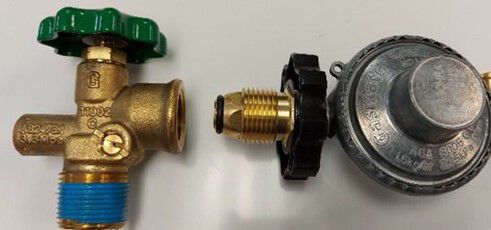

You might have heard on the grill vine a change is coming to the way Weber barbecues connect to gas bottles. From April 1st, 2022, the Australian Gas Standard has adjusted the regulations to adopt a newer and safer hose connection for LPG barbecues and gas appliances. The current connection is commonly referred to as a Type 21 or POL fitting. The future of Australian gas appliances sees a change over to the new Type 27 or Leisure Cylinder Connection - LCC27. The new connection will be in effect for barbecues manufactured after the 1st of April 2022, however current floor stock may have the Type21 fitting and can still be sold. This change will take place over 10 years, and by 2032 the Type 21 will be officially obsolete. Please refer to your Weber Owner's Manual for when the hose should be replaced on your barbecue. If you would like to read more, please refer to the Australian Standard AS/NZS 5263.1.7, Domestic outdoor gas cooking appliances and AS/ NZS 2658 LP gas portable and mobile appliances.

The new Type 27 or Leisure Cylinder Connection - LCC27 cylinder valve significantly reduces the chance of incorrectly connecting the hose to the gas bottle allowing gas to escape and causing a potential fire risk.

Some of the benefits of the new Type 27 Connections include:

• The cylinder valve incorporates a 'check valve' that will only enable gas to flow when a gas-tight connection is made. This will ensure gas cannot flow from the cylinder even if the hose has been disconnected and the valve handle has been left in the open position.
• The connection is a large-diameter right-handed thread that is able to be made without the use of tools. Unlike the POL which caused many sore hands when over-tightened accidentally.
• The new appliance or 'pigtail connection' does not include rubber o-rings or bull-nose seals, which often become damaged or missing. All perishable rubber seals are located within the body of the gas valve.
• In the event, the connection is exposed to a fire. The connection incorporates a thermal fuse that will melt when exposed to heat. This allows the internal check valve to close and shut off the gas flow.

If your burner tubes are clean and you are experiencing low gas flow resulting in your barbecue not heating up properly, follow the steps below on resetting your Type 27 gas regulator.

The Type 27 gas bottle regulators have a safety feature to restrict gas flow, should a leak occur between the regulator and the barbecue. However, it can also be activated in a few other instances including:

• If you open the cylinder valve, and the burner control knobs are already turned on.
• If you close the gas cylinder valve, and the burner control knobs are still on.
• An overfilled cylinder is reattached to the barbecue.

In these cases, a quick rush of gas to the barbecue activates the safety device causing a low flow of gas and underperformance. This is easily corrected by resetting the regulator.

How to reset the regulator.

1. Turn off the barbecue, using the control knob(s), not the gas bottle.
2. Wait for at least 1 minute to allow the pressure to build up in the hose before trying to light your barbecue.
3. With the lid open, re-ignite the barbecue by turning the control knob to start/high and pressing the igniter button, refer to the lighting instructions provided with your barbecue.

Remember going forward to always turn the barbecue off using the control knobs first and then at the gas bottle.
